- Suitable for Residential and Apartment buildings
- 24V Irreversible gearmotor with thrust up to 4000 N
- ATI 3m (ATI30DGF)– max weight @2m – 800kg, 2.5m – 600kg, 3m-400kg
- ATI 5m (ATI50DGF) – max weight @2m – 1000kg, 2.5m – 800kg, 3m- 600kg, 4m- 500kg, 5m- 400kg
- Fast opening in up to 13 seconds for 90°(ATI3m) and up to 19 seconds (ATI5m), with encoder technology
- Mechanical opening and closing stop
- * Compatible with the older version of CAME ATI
- Battery operation system in case of power failure on 24V versions
- Sturdy pre-welded rear mounting brackets for easy motor installation
- Unlocking system with trilobe key or remote unlocking system available as an optional
- Intensive Duty
- Developed with CONNECT technology for remote management via gateway or CAME KEY
- Compliant with Regulation (EU) 2023/826 for energy consumption in off, standby & network stand-by modes
- RAL 7024

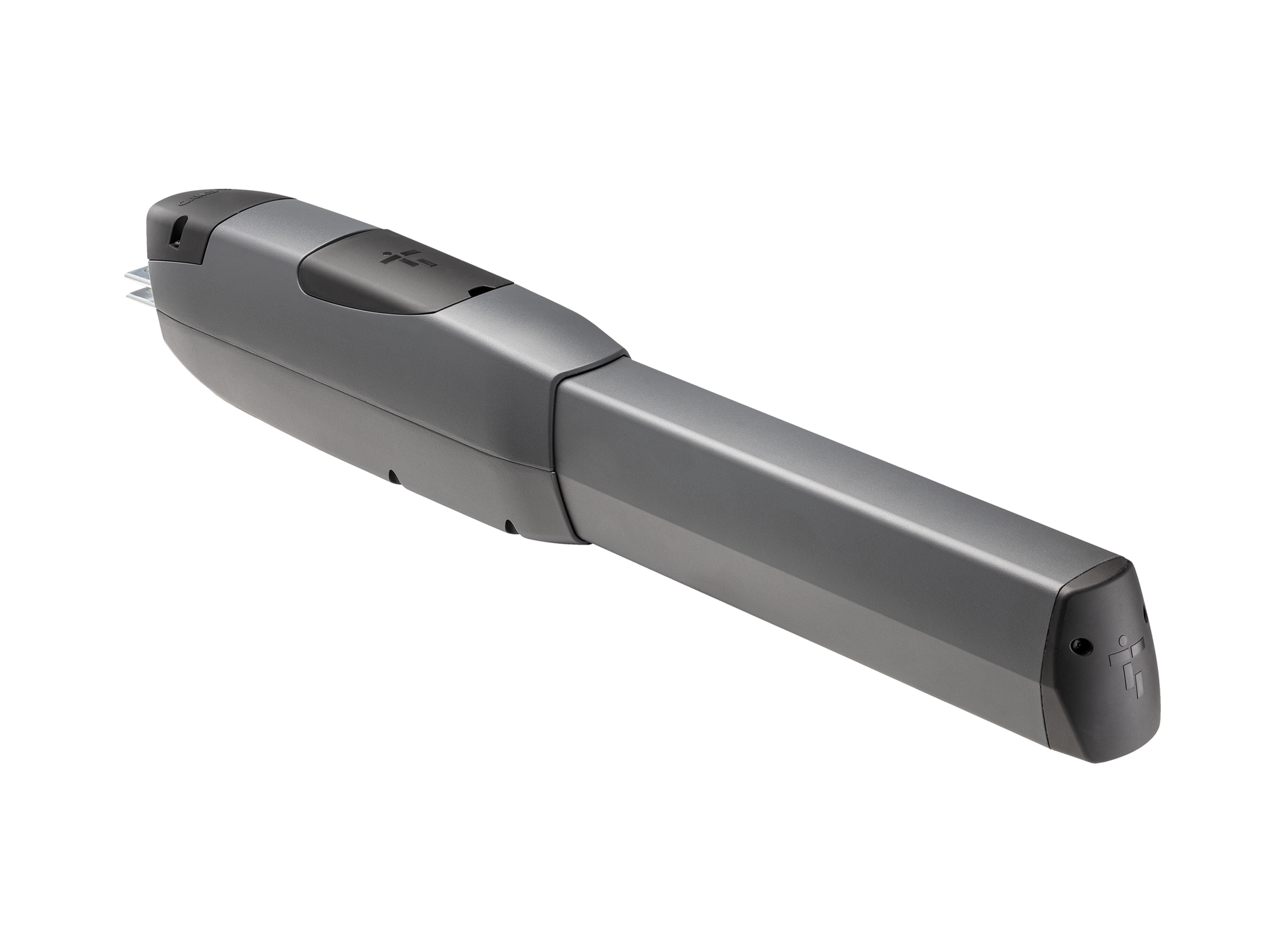

CAME ATI 24V Gearmotor
801MP-0210
ATI30DGF -3m Irreversible gearmotor with encoder. Fast version up to 13/s/90°
801MP-0220
ATI50DGF -5m Irreversible 24v gearmotor with encoder. Fast version up to 19/s/90°
