- 24V Brushless motor for residential and industrial sliding gates
- Available to 1200kg max leaf weight.
- Adaptive Speed & Torque Technology to ensure a lasting constant & smooth speed during movement
- Control board with terminal blocks, graphic display & storage up too 1000 users
- Board equipped with CXN BUS connectors
- Four safety inputs which can configured to directly manage the resistive safety edges
- User friendly release lever for manually opening the gate
- Integrated clock card for management of up to 8 opening & closing operations programs
- IP54 Protection rating against weathering agents
- RAL 7024 Grey
- Ready for installation of magnetic switches (001RSDN002)
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY
- Second radio channel B1 and B2 output, magnetic limit switch, built-in radio decoding, movement management and obstacle detection for gates up to 1200 kg and 20 m in length.
- Requires MOD 4 Racking
- BKX release system

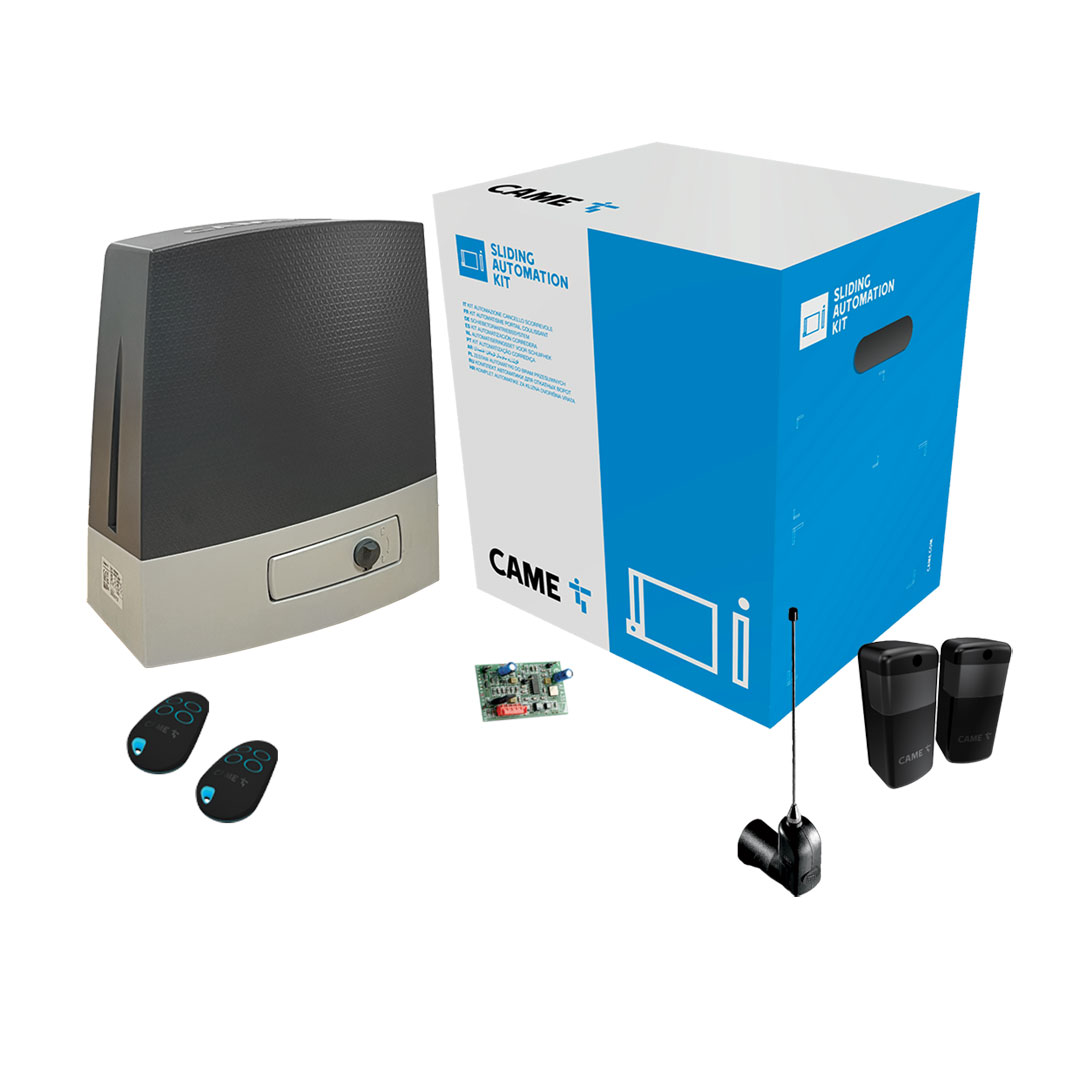

- Kit contains 800kg/1200kg Gearmotor, Plug-in radio frequency card & Tuned Antenna, Magnetic Limit switches (1200kg Version only)
- *You choose type of Photocells (DIR, DXR, DXR BUS, DLX BUS), Transmitters x 2 (TOP/TTS)
CAME BKX 24V Sliding Gate Kits
0U1BCN0051
up to 800kg, DIR10 Photocells, TOP transmitters
0U1BCN0052
up to 800kg, DXR Photocells, TOP transmitters
0U1BCN0053
up to 800kg, DXR Photocells, TTS transmitters
0U1BCN0054
up to 800kg, DXR BUS Photocells, TOP transmitters
0U1BCN0055
up to 800kg, DXR BUS Photocells, TTS transmitters
0U1BCN0056
up to 800kg, DLX BUS Photocells, TOP transmitters
0U1BCN0057
up to 800kg, DLX BUS Photocells, TTS transmitters
0U1BCN0058
up to1200kg, DIR10 Photocells, TOP transmitters
0U1BCN0059
up to1200kg, DXR Photocells, TOP transmitters
0U1BCN0060
up to1200kg, DXR Photocells, TTS transmitters
0U1BCN0061
up to1200kg, DXR BUS Photocells, TOP transmitters
0U1BCN0062
up to1200kg, DXR BUS Photocells, TTS transmitters
0U1BCN0063
up to1200kg, DLX BUS Photocells, TOP transmitters
0U1BCN0064
up to1200kg, DLX BUS Photocells, TTS transmitters
