SKU: MTMFNAVR - MTMNA

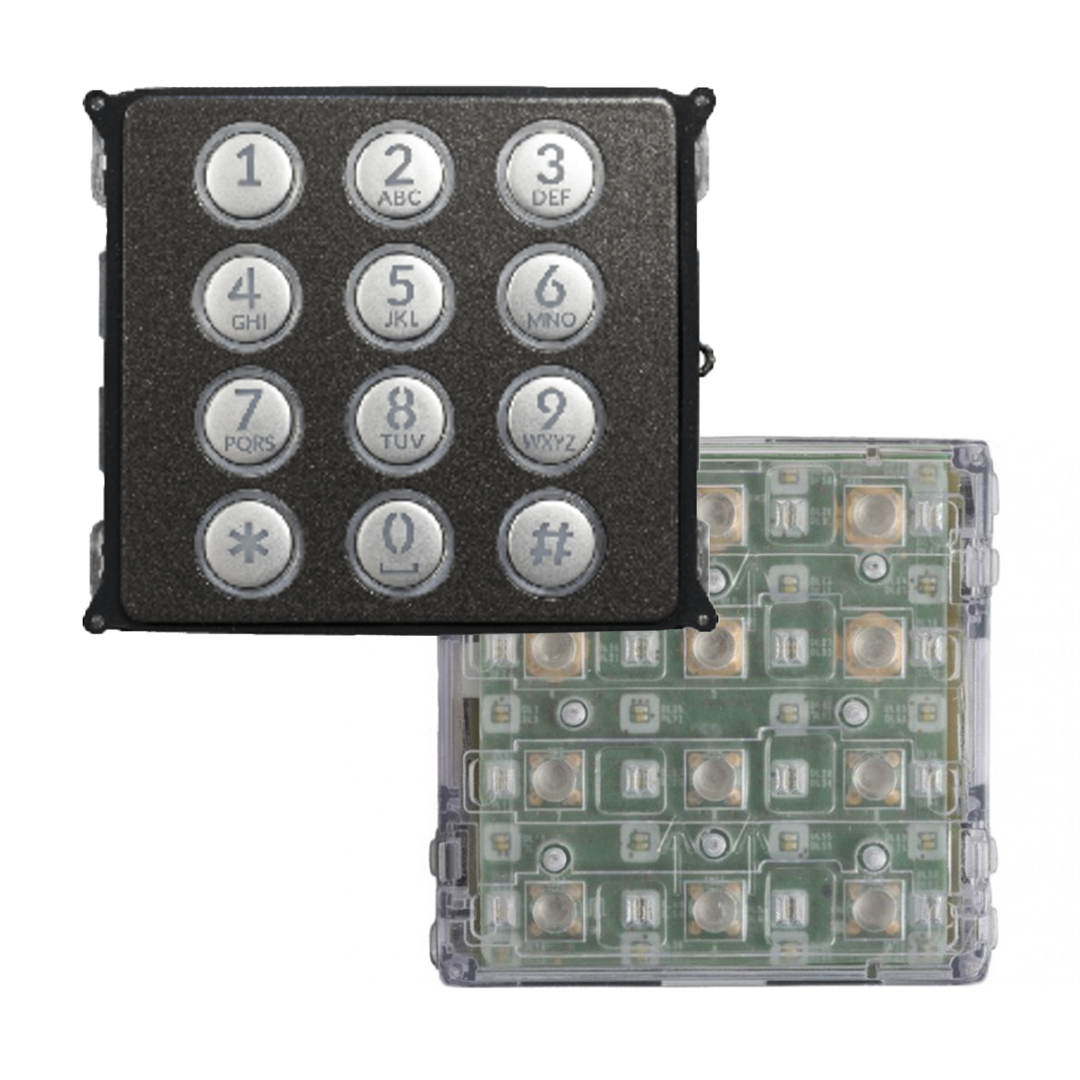

CAME BPT MTMFNA VR Keypad panel

& MTMNA component

£80.12£98.93 exc VAT

  • For MTM & MTM VR range

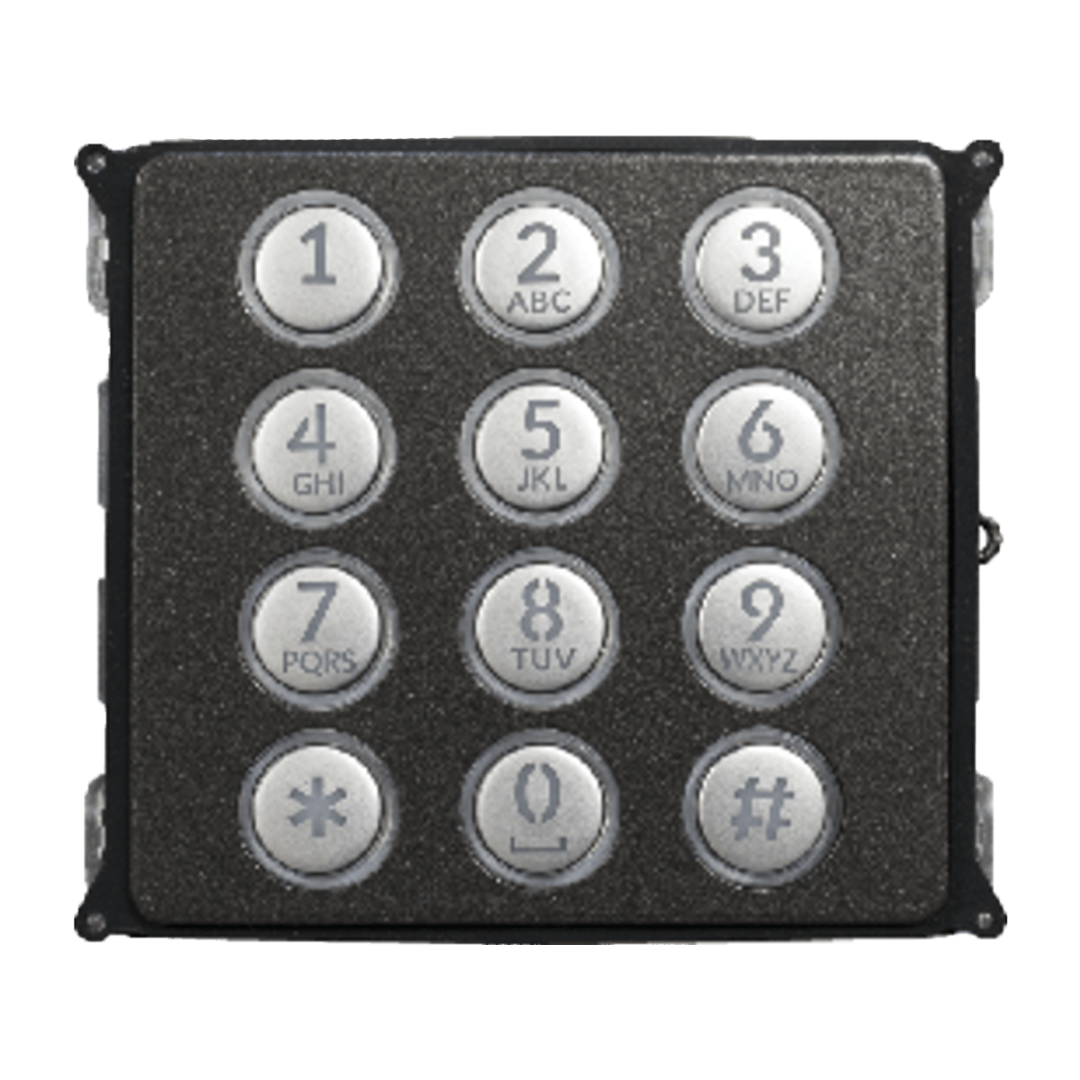

  • MTMFNAVR -Keypad module front panel  (60020930) for MTMNA component
  • Natural anodized satin finish
  • With polycarbonate bracket
  • Impact rating IK07

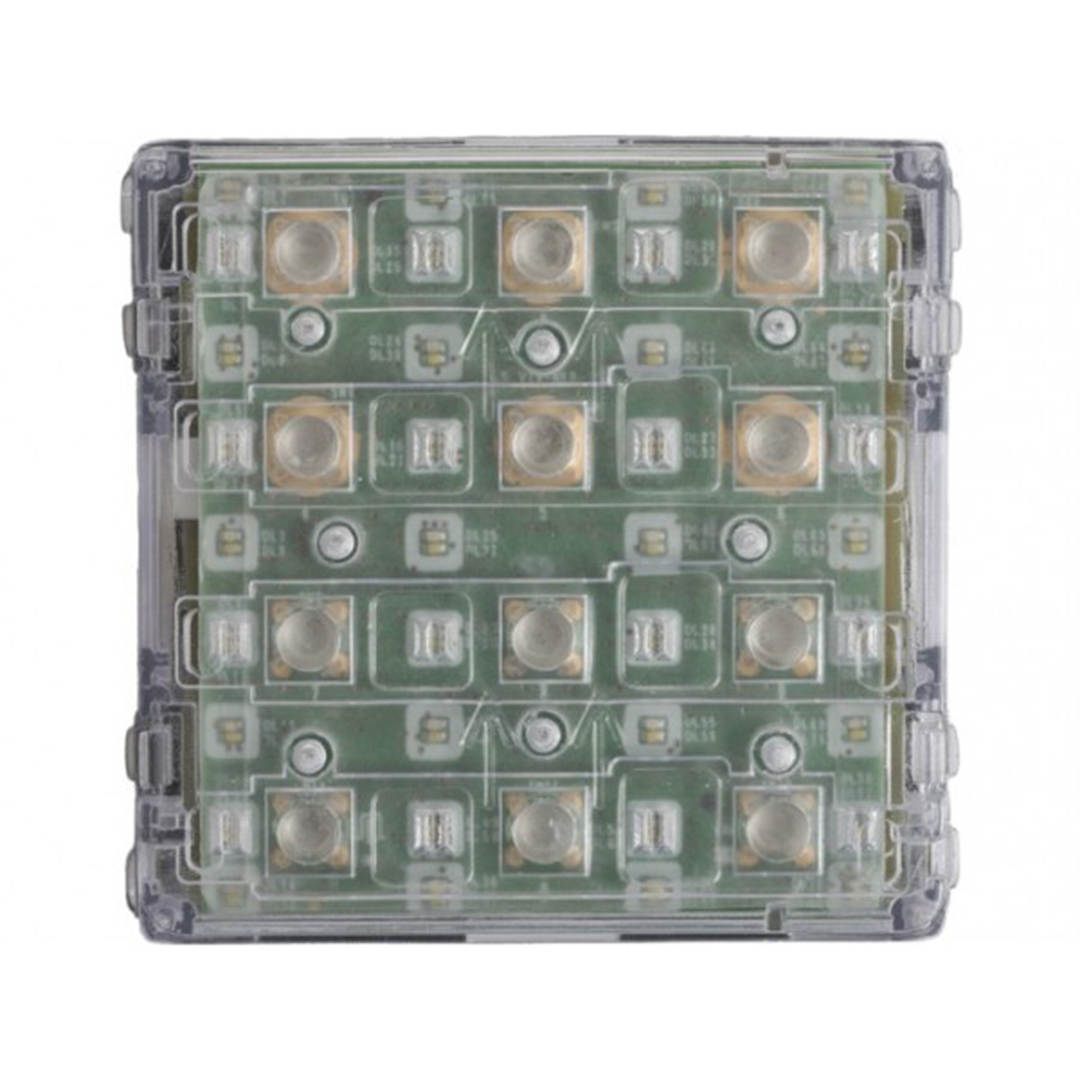

  • MTMNA – Keypad module with access control (60020380)
  • 12-key alphanumerical keypad
  • Dual blue or white backlight with brightness settings with adjustable brightness
  • Up to 3500 numeric access control codes in stand alone mode
  • CAN BUS connection to XiP or IP360 system
  • 2 on-board relay for opening main entrances
  • Manual or PC tool programming
  • IP54 water & dust protection when combined with corresponding panel
Model
MTMNA
Dimensions (mm)
85 x 85 x 35
Power Supply (V)
12 - 24 AC - DC
Consumption in stand-by mode (mA)
35
Max. absorption (mA)
90
Operating temperature (°C)
-25 ÷ +55
Protection rating (IP)
54
