SKU: 1097805*

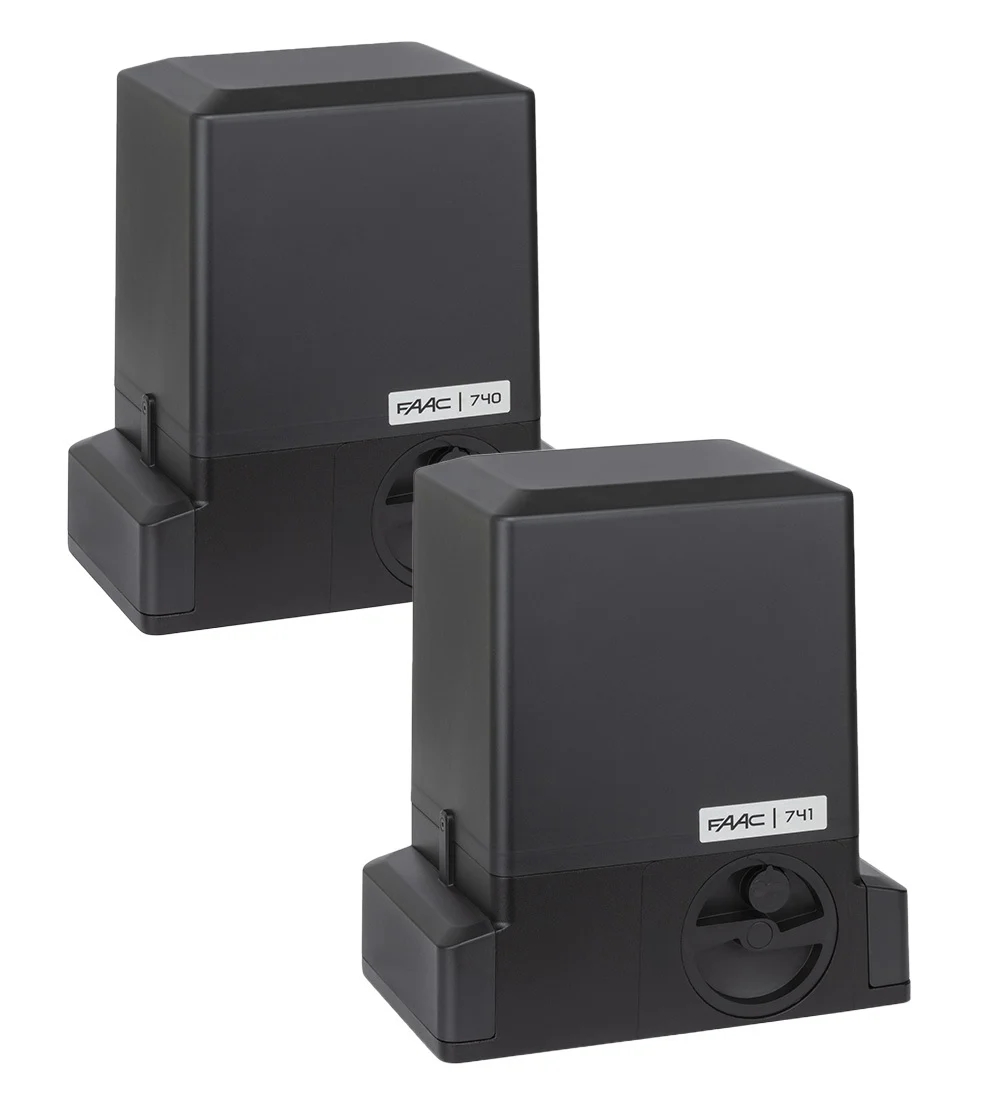

FAAC 740 C – 741 C

Name: FAAC 740 C - 741 C
Brand: FAAC
SKU: 1097805*
Availability: InStock

230

Price range: £559.00 through £787.00 exc VAT

Product

Clear

Official FAAC ResellerLogin or Register for Special Pricing

Suitable for residential sliding gates
Max weight of 500 kg (740 C) and 900kg (741 C)
Advanced Gear motor with built in control unit with adjustable speed, safety edge inputs, FDS & Omnidec radio protocol, Bus2Easy technology
Integrated Low Consumption Functionality in Standby Mode in compliance with Ecodesign Directive 2009/125/EC & EU Reg 2023/826
Low power mode can be easily enabled or disabled via the board’s menu
If enabled it activates automatically after a few minutes of inactivity, reducing standby power consumption (<0.5W, or 2W if connected to Simply Connect)
High Performance Motor Control features high resolution encoder for smooth operation, forced optimisation reduced consumption, and adjustable obstacle detection sensitivity
Timeless design with clean distinctive lines

FAAC 740/741 Gearmotor

1097805

7 E Z16 Gearmotor (max. 500kg)

1097815

7 E Z16 Gearmotor (max. 900kg)

Product: 740 C; 741 C
Power supply voltage: 220-240V -50/60 Hz; 220-240V -50/60 Hz
Max. Power: 430 W; 530 W
Absorbed current: 1.5 A; 2.2 A
Traction & thrust force: 45 daN; 65 daN
Thermal protection on motor winding: 140 °C Self restoring; 140 °C Self restoring
Reduction ratio: 1:25; 1:25
Leaf max. weight: 500kg; 900kg
Operating ambient temp: -20°C to +55°C; -20°C to +55°C
Protection class: IP 44; IP 44
Dimensions (LxDxH) in mm: 295 x 181 x 320; 295 x 181 x 320
Max. torque: 18 Nm; 18 Nm
Max expressed force: 450 N; 680 N
Max. leaf width: 15m; 15m
Leaf speed: 12m/min; 12m/m
Speed adjustment & motor control: Yes; Yes
Limit switch: Magnetic; Magnetic
Pinion: 16 Mod 4; 16 Mod 4
Encoder: Magnetic Encoder; Magnetic Encoder
Force adjustment: Via electronic control board; Via electronic control board
Weight: 11.9 Kg; 13.1 Kg
Use frequency: 56 cycles/h; 56 cycles/h
Electronic equipment: Built-in; Built-in
Release device: Rotating releasr knob - coded key; Rotating releasr knob - coded key
Thrust capacitor: 10; 12.5
