SKU: 790286*

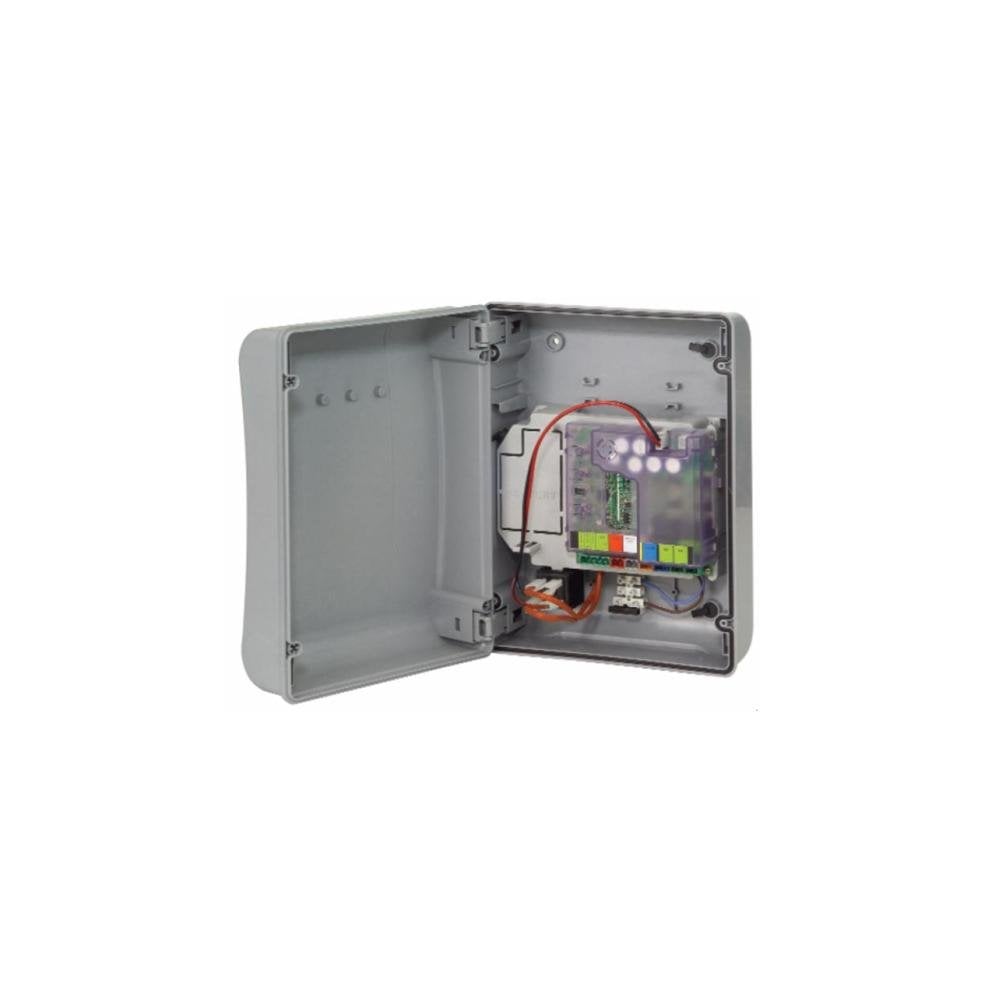

FAAC E 024 S Control Board

24v

£256.00 exc VAT

Official ResellerLogin or Register for Special Pricing

  • FAAC E024S Control Board
  • Power supply voltage 230Vac
  • 24V panel
  • Absorbed power 4 W
  • Motor max load 150 W x 2
  • Accessories max.current 250 mA
  • BUS accessories max.current 400 mA
  • Work time (time-out) 5 minute (fixed)
  • Pause time varies according to learning (0-10 min)
  • Terminal board inputs – open A, open B, Stop, BUS (I/O)
  • Function logics EP, A,E, AP, A1,B, C
  • Connector inputs – Power supply battery – module XF 868
  • Terminal board outputs – Motors, Flashing lamp, power supply to accessories, electric lock, service light contact (90 sec fixed)
  • Programmable functions – Logic ( A,E,EP,,A,B,C), Speed (high/low), Force (4 levels)
  • Learning functions – Pause time, leaf 2 delay at closing
  • Integrated radio channels type – DS, SLH (max 250 channels)



E024S
Power supply voltage
230 V ac (+6% -10%) 50 (60) Hz
Absorbed power
4 W
Motor max. load
150 W x 2
Accessories max. current (+24V)
250 mA
BUS accessories max. current
400 mA
Operating ambient temp
-20°C to +55°C
Protection fuses
F1= self-resetting: F2=T2A-250V
Function logics
EP, A,E, E, A1,B,C
Work Time (time-out)
5 minute (fixed)
Pause time
Varies according to learning (0 to 10 min)
Terminal board inputs
Open A, Open B, Stop, BUS 2 Easy
Connector inputs
Power supply battery - module XF 868
Terminal board outputs
Motors, flashing lamp, power supply to accessories, electric lock, service light contact (90sec fixed)
Programmable functions
Logic (A, E, AP, EP, A, B, C), Speed (high/low), Force(4 levels)
Learning functions
Pause time, leaf 2 delay at closing
Integrated radio channels type
DS, SLH (max 250 channels)
