SKU: L9BAR-KIT

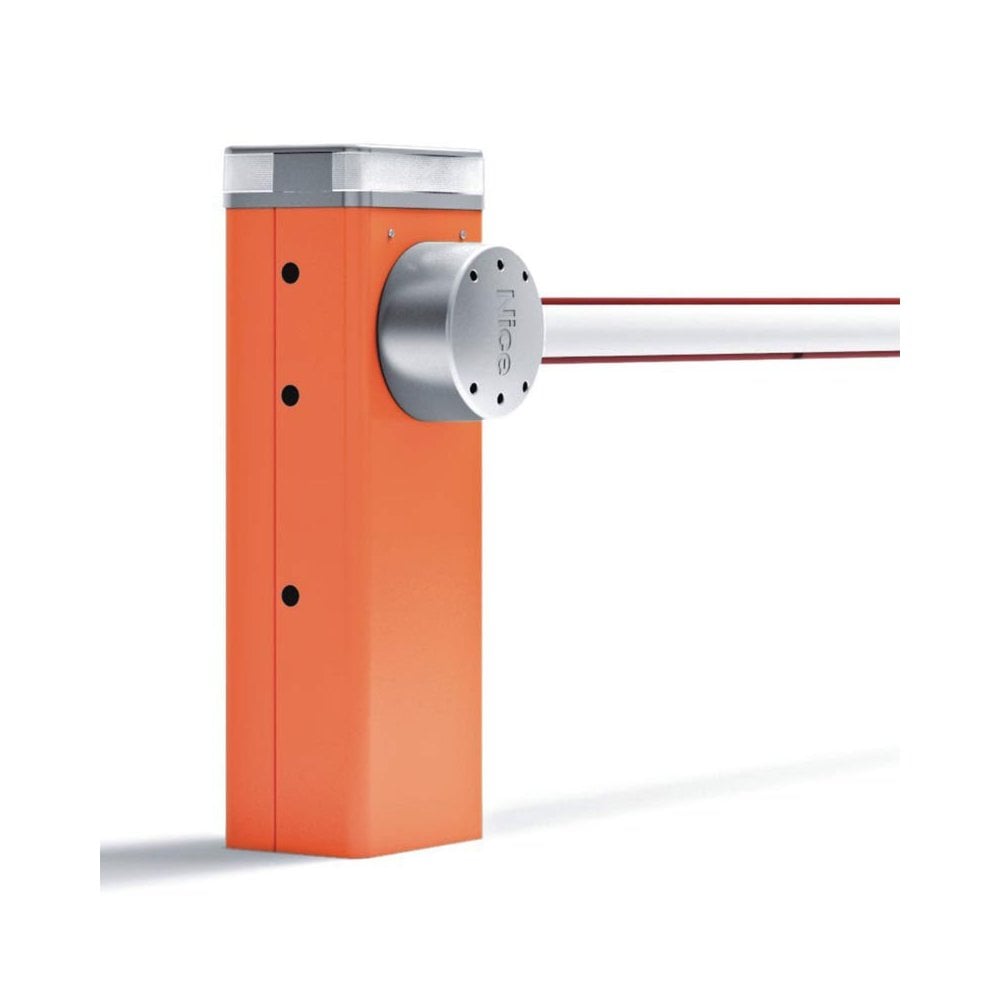

NICE L9-BAR Barrier Kit

from 7m to 9m

24

£3,098.60 exc VAT

NICE L-BAR Barrier Gate Operators – Standard or Wide

  • NICE L9- BAR barrier kit
  • Electro mechanical barrier system for control of road access
  • 24 Vdc gear Motor with built in control unit
  • Two inputs to control loop detectors with LP21 & LP22 accessories
  • Modular bar are easily assembled using aluminium expansion joint
  • Rapid & easy access to the control unit located in upper section of barrier body
  • System sets to standby when not in use
  • Powerful and fast, for bars from 7 to 9m
  • Automatic fault diagnostics
  • Obstacle detection with dual technology
  • IP54
  • For 7m- will include 3m +4m Beam
  • For 8m- will include 4m + 4m Beam
  • For 9m will include 4m + 5m Beam



Item
Single Kit
Double Kit
L9BAR -Road Barrier System up to 9m Beam
1
N/A
XBA14 -White painted aluminium bar
2
N/A
WA10 -Red adhesive reflector strips (24pcs)
1
N/A
WA11 -Adjustable stand for bar
1
N/A
XBA9 -Expansion joint
1
N/A
Code
L9BAR
Power Supply (Vac 50/60 HZ)
230
Power Supply (Vdc)
24
Absorption (A)
1,3
Power (W)
160
Speed min. ÷ Max. (s)
8 ÷ 12
Torque (Nm)
400
Work cycle (cycles/hour)
150
Protection level (IP)
54
Working temp. (°C Min/Max)
-20 ÷ +55
Dimensions (Mm)
500x299x1215h
Weight (kg)
98

Document Downloads
