The NICE M-BAR range is a professional-grade 24V DC electro-mechanical barrier designed for intensive vehicle access control in commercial, industrial, and high-traffic environments. The series combines high-duty-cycle performance, advanced control electronics, and integrated safety features to ensure reliable long-term operation.
Mechanical Construction
- Heavy-duty steel cabinet with corrosion-resistant finish available in Orange painted or Stainless steel, White & Grey colours now also available
- High-performance spring balancing system rated for up to 2,000,000 operating cycles
- Oval aluminium boom profile designed to minimise wind load and improve structural stability
- Modular boom design with aluminium expansion joints for rapid assembly and transport
- Separate internal compartments for mechanical and electronic components to improve protection and service access
Drive System
- 24V DC electro-mechanical gearmotor for intensive use applications
- Integrated control unit located in the upper section of the cabinet for improved accessibility
- Encoder-based position control with electromechanical limit switches for precise movement and positioning
- Adjustable opening and closing speeds via onboard programming interface
Control & Programming
- Integrated control board with LCD display and joystick interface for fast configuration and diagnostics
- Master/Slave functionality for synchronised control of opposing barriers
- Dedicated outputs for powering external 24V DC accessories
- Dual inputs for inductive loop detectors using LP21 and LP22 interface modules
- Standby mode for reduced energy consumption during inactivity
Safety Features
- Continuous motor current monitoring with obstacle detection and automatic reversal
- Automatic fault detection with visual flash-code diagnostics
- Recessed housing for photocells within the barrier body for protected, discreet installation
- Provision for connection of optical safety devices and 8.2 kΩ resistive safety edges
- Movement control monitored throughout the full operating cycle
Accessories & Options
- Integrated flashing light (XBA7) or traffic light (XBA8) within the cabinet cover
- Optional PS224 battery backup module (internal installation) for continued operation during mains power failure

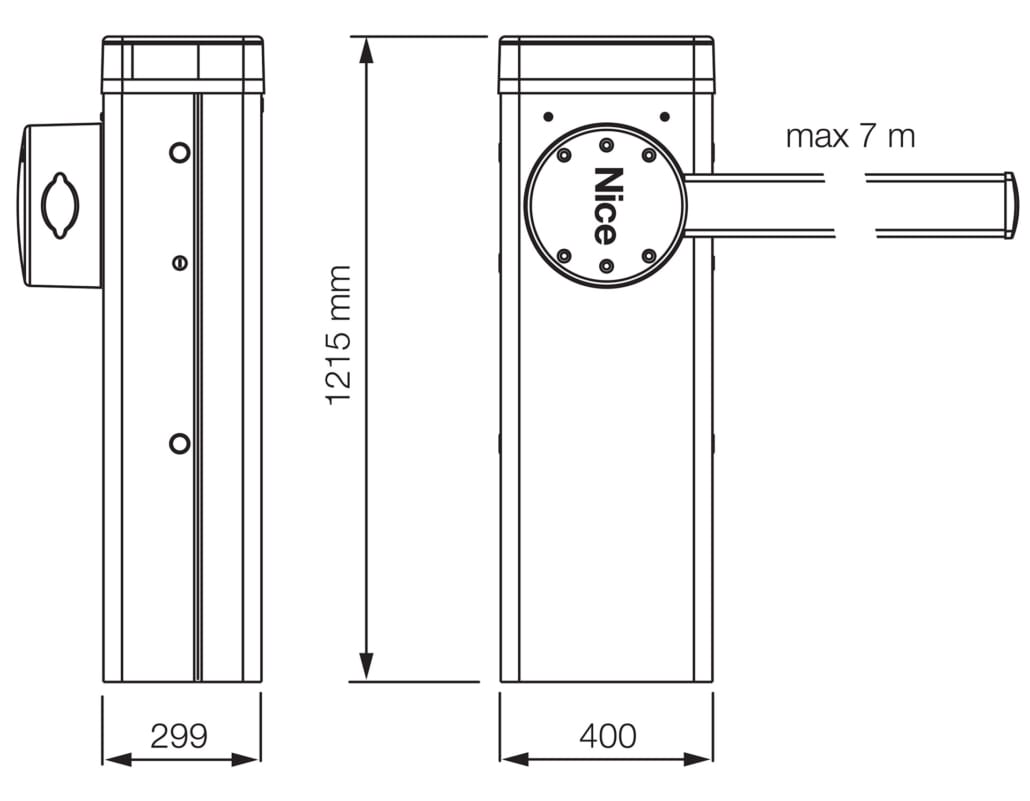

NICE M BAR PEDESTAL inc. Anchorage base
M3BAR
for 3m Beam, Non Reversible, Steel with protective cataphoresis treatment, Orange. Intensive use
M3BARI
for 3m Beam, Non Reversible, Stainless Steel case
M5BAR
for 4m or 5m Beam, Non Reversible, Steel with protective cataphoresis treatment, Orange. Intensive use
M5BARI
for 4m or 5m Beam, Non Reversible, Stainless Steel case
M7BAR
for 5m, 6m (3+3m) or 7m (3+4m) Beam, Non Reversible, Steel with protective cataphoresis treatment, Orange. Intensive use
M7BARI
for 5m, 6m (3+3m) or 7m (3+4m) Beam, Non Reversible, Stainless Steel case
