SKU: MFAB3024HS*

NICE M FAB HS 3024

Hi-Speed Operator - up to 3m leaf

24

Price range: £155.05 through £421.47 exc VAT

  • NICE M-FAB Hi-speed operator
  • 24V Non-reversible FAST motor with magnetic encoder, complete with connecting lever & mechanical stop in closing
  • For leaves up to 3m or 300kg
  • Ideal for residential applications
  • Ideal for intensive use and quick manoeuvres: 90º opening in about 8 seconds
  • IP 67
  • *Foundation box sold separately MFABBOX -MECFR02 or MFABBOXI-MECX02
NICE M-FAB HS 3024
MFAB3024HS
Non-reversible, Fast, with magnetic encoder, complete with connecting lever & mechanical stop in closing
MFABBOXI
Externally chamfered stainless steel foundation box with mechanical stop in opening
MFABBOX
Electrophoretic painted, externally chamfered foundation box with mechanical stop in opening
Power Supply (VDC)
24
Draw (A)
6
Power (W)
170
Speed (rpm)
>>2,6<<
Torque (Nm)
180
Working Cycle (cycles/hour)
80
Protection Class (IP)
67
Operating Temperature (°C Min/Max)
-20 ÷ +50

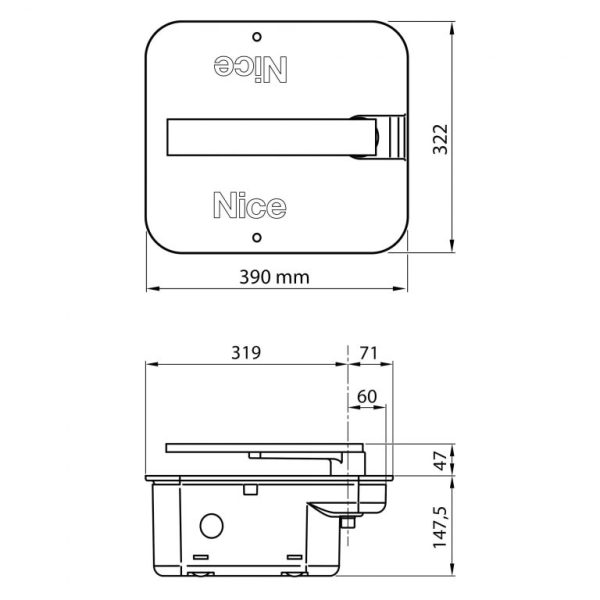

Dimensions (mm)
390x322x194 h
Weight (kg)
11

Document Downloads
