Nice

SKU: WALKY1024-SKIT

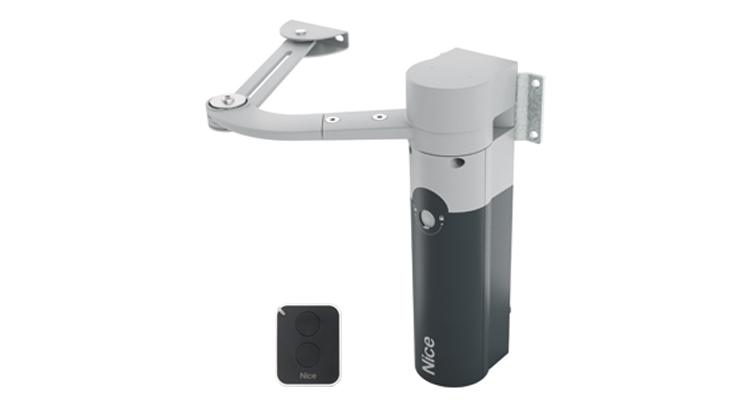

NICE WALKYKIT 1024

Electromechanical Single Kit

230

£532.59 exc VAT

  • NICE WALKYKIT 1024 230v Single Kit
  • For swing gates with leaves up to 1.8m especially suited to gates in wood or PVC.
  • Irreversible Electro mechanical gear motor at 24Vdc with articulated arm.
  • Ultra compact
  • Ideal for pedestrian and residential use recommended for small posts (width 8cm).
  • Safe thanks to the irreversible motor and anti shear-arm with built in mechanical stop on closure (with installation of entire arm).
  • The articulated arm enables installation in specific conditions such as in the presence of obstacles adjacent to the post.
  • 7 seconds to open or close (in optimal conditions with reduced arm and 90ه¼ opening)
  • Incorporable flashing LED indicator with courtesy light function (WLT optional), rapid motor release for manual movement’
  • Built in control unit with simple programming, self learning of opening and closing limit positions, automatic fault diagnostics, programming of pause time, pedestrian pass door, deceleration on opening and closing,
  • Operation in the event of a power failure by means of optional batteries (PS424) housed inside the motor.
  • IP44 casing
  • Dimensions 90mm x 125mm x 385mm H
Item
Single Kit
Double Kit
Electromechanical Motor
1
N/A
Transmitter
1
N/A
Signboard
1
N/A
Power Supply (VAC 50/60 Hz)
230
Draw (A)
0,8
Power (W)
120
Speed (rpm)
1,5 - 2,2
Torque (Nm)
120
Working Cycle (cycles/hour)
50
Protection Class (IP)
44
Operating Temperature (°Min/Max)
-20 ÷ +50
Dimensions (mm)
90x125x385 h
Weight (kg)
4,8
