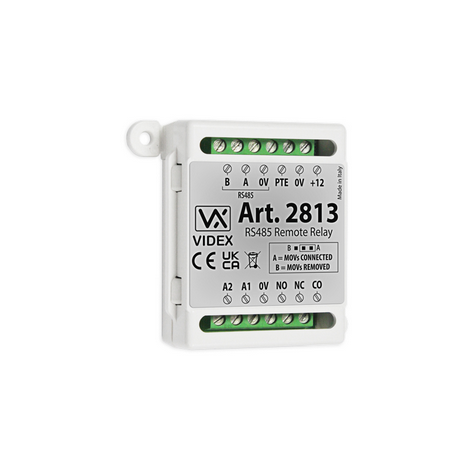

Name: VIDEX 2813 RS485
Brand: VIDEX
SKU: 2813
Availability: InStock

The 2813 is a networkable RS485 remote relay which is compatible with Videx’s 4G GSM intercom modules (excluding the 150/4G module) and Videx’s IP system devices (IP entry panels and videophones/monitors).

RS485 bus connectivity
Connection to 4G GSM intercom modules (exc. 150/4G module)
Connection to IP system devices (IP entry panels & videophones/monitors)
Connection to 4903 keypads and 4850R proximity readers
The relay can be operated directly via the PTE input or alternatively the relay and both auxiliary outputs can be activated remotely
via text message or by using VIDEX’s GSM mobile apps (the SMS Wizard for users and the SMS Wizard PRO for installers) or VIDEX’s IP CloudNected app.
Dry contact relay (CO, NO, NC) with latch “toggle” mode ability
Switched 0V PTE input for relay
2 switched 0V auxiliary outputs A1 and A2
Secured by Design feature

: RS485 Remote Relay
System: 4G GSM system or IP system
Device Type: Networkable RS485 remote relay
Power Supply: 12 Vdc
Current: 5mA (standby), 34mA max. (during operation)
Relay: 1x dry contact relay (CO, NO, NC), 3A @ 24Vac/dc max
Back EMF protection: Yes, internal MOVs (adjustable via jumper)
Inputs: 1x PTE for relay (switched 0v)
Outputs: 2x auxiliary outputs A1 and A2
Programming: device ID setup (ID.0 – ID.63), relay, A1 and A2 activation times (1 – 63 seconds or 0 for latch “toggle” mode – all via internal dip-switches
Mounting: Surface Wall Mount
