- Digital 4G GSM module with Scroll for up to 500 users (4812R/4G)
- Digital 4G GSM module with A-F for up to 500 users (4812/4G)
- Two modules size with back lit graphical LCD display,
- Back lit keypad,
- Voice call progress information.
- Calls up to 500 apartments each with up to 4 telephones and 500 access codes.
- Dial in to open facility and extensive programming options.
- Proximity access control integrated as standard.
- With Scroll facility key
- *When used in conjunction with 4882 back box, the middle support bracket must be removed prior to fitting
- Working Voltage: 12v DC +/- 10%
- Standby Current: 60mA (max.)
- Max. Current: 500mA (max.)
- Programming: Via alpha-numeric keypad, SMS messaging or PC software
- Push to Exit: 1 (switched 0v input)
- Auxiliary Input: 1 (switched 0v input)
- Auxiliary Output: 1 (open collector output, switched 0v, 150mA max.)
- Dry Contact Relay: 3amp @24v DC, 3amp @ 120v AC
Vandal Resistant Digital GSM Panel

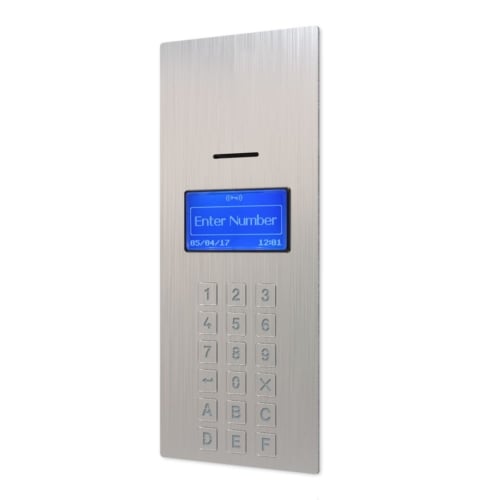

VR 4812/4G
2 module with 'A-F' LCD display & speech + USB interface

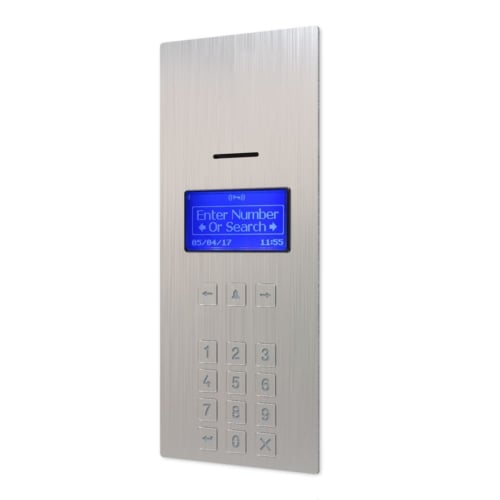

VR 4812R/4G
2 module with scroll keys to search name, LCD display & speech + USB interface
