The Klass 7″ Monitor provides a wide range of smart integration with various systems including building and home automation, third-party CCTV picture-in-picture, anti-intrusion, full video and speech intercommunication and access control.
Features
-
- Manufactured from ABS impact resistant plastics with ultra-slim 3mm tempered glass finish
- 7″ hi-res colour TFT full touch capacitive screen with OSD menus
- 1024 x 600 pixel resolution display
- Compatible with SIP 2.0, RTSP and HTTP protocols
- Embedded Linux operating system
- 8 soft-touch buttons that can be configured or dedicated to preset functions
- Up to 16 IP video streams with picture in picture function
- Built-in sensors for integration with third party systems
- Smart chronothermostat function that can be managed locally or through the Videx CloudNected App
- Video intercommunication facility
- 2 active low inputs and 2 programmable relay outputs
- 12Vdc powered or PoE switch
- Desk mountable using desktop kit
- All programmable functions can be programmed using the Videx IP Wizard software or OSD touch screen menus
- Induction coil for the hearing aid users
- Video calls with high resolution camera
- Available in black or white
- *Handset options available (KLHSB or KLHSW)
- VIDEX DNGL – Optional device that can be inserted inside the video intercom for connection to the local Wi-Fi
network. An alternative connection type to the standard Ethernet connection.
Allows connectivity to the VIDEX Cloud or through integrated browser the possibility of
integration with third-party devices

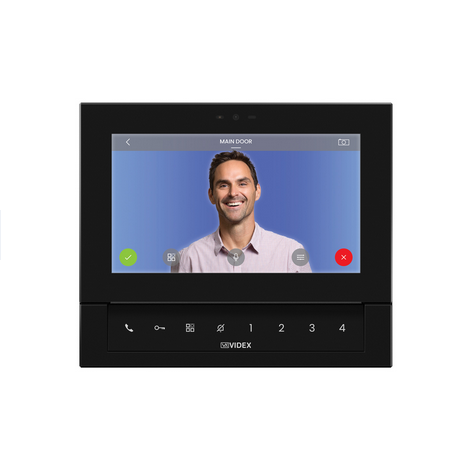

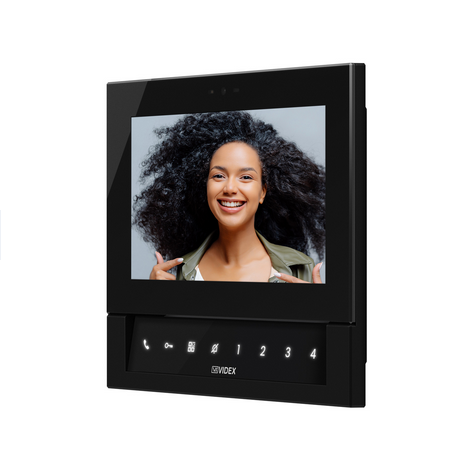

VIDEX KLASS 7" Touch Screen Video Monitor

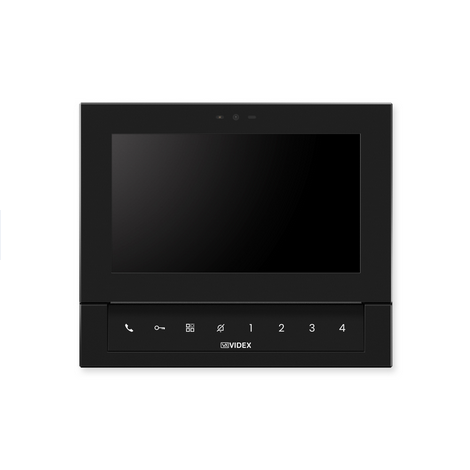

KL7VXIPB
Black 7" colour touch screen hands free video monitor with POE or 12Vdc input
KLHSB
Black handset kit for above

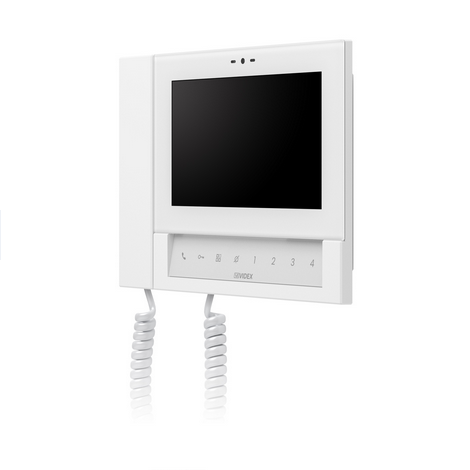

KL7VXIPW
White 7" colour touch screen hands free video monitor with POE or 12Vdc input
KLHSW
White handset kit for above
KLHSTS

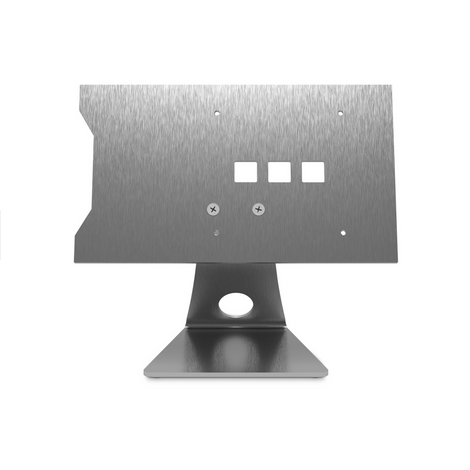

Handset Desk kit
KLHFTS
Handsfree Desk kit

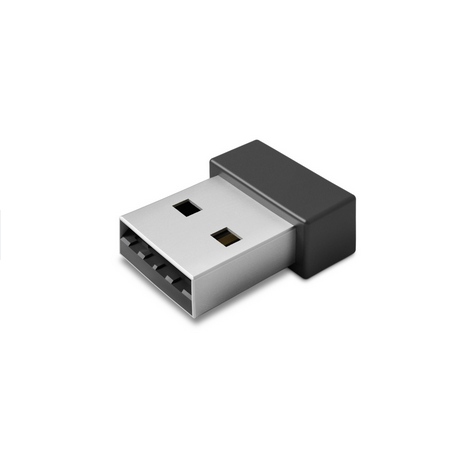

DNGL
WiFi Dongle for Klass video monitors
