VIDEX Stainless Steel Posts

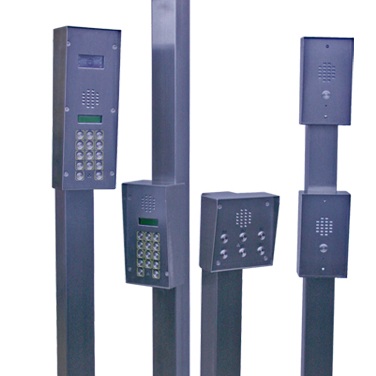

Videx offer a range of standard sized stainless steel posts straight-up posts (SP9 series) and 45° angled arm posts (PO 45° series), all with universal fixings which will accommodate the full range of Videx audio, video and access control products.

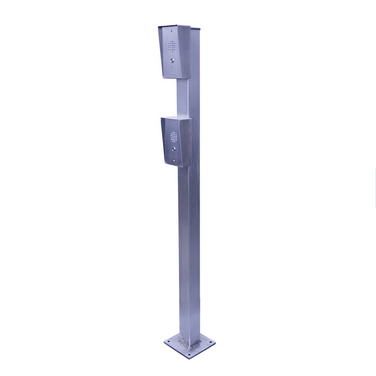

• Five mounting height options: 1.2m (car), 1.6m (pedestrian), 1.2m & 1.6m (dual height pedestrian), 1.2m & 2.0m (car & HGV height) and 2.0m (HGV height)
• Universal mounting fixing holes which allow the attachment of door entry panels or access control units
• All posts are manufactured from durable and hard wearing brushed stainless steel.
• A range of post mounting boxes and mounting plates are available separately to suit the Videx VR120 series, 4000 & VR4K series and also the VX2200 VR (SP300) digital series. Special boxes for bespoke VR panels are also available on request

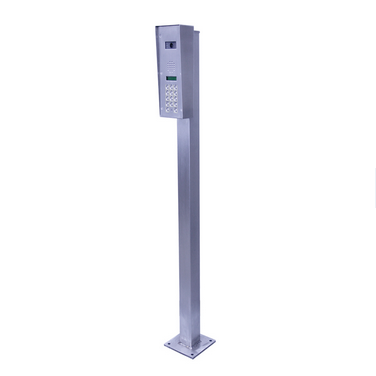

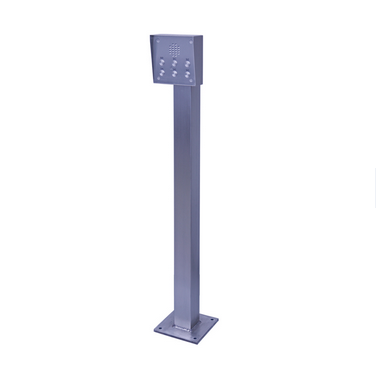

SP9  – 80mm Straight posts

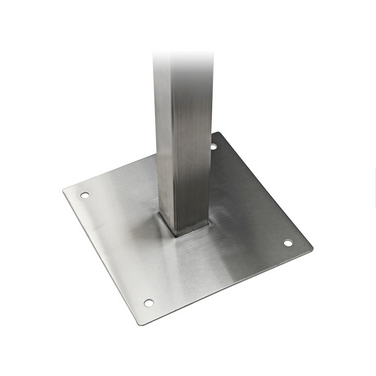

• Base plate dimensions: 200mm x 200mm x 8mm.
• Base fixing: 4 x 14mm fixing holes.
• Post dimensions 80mm x 80mm tube.

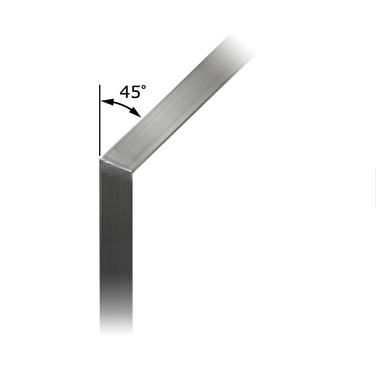

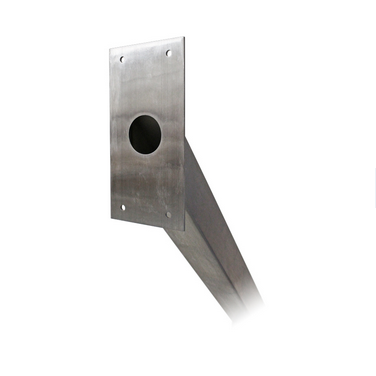

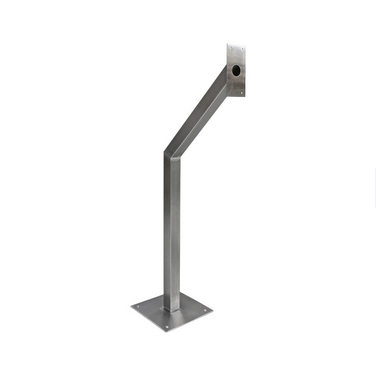

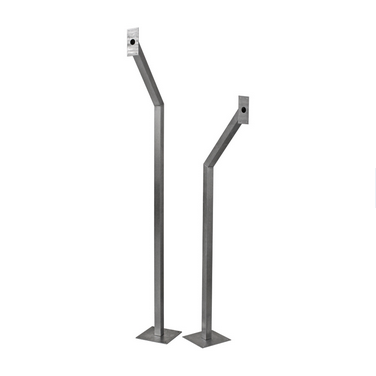

PO 45° series – 50mm Angled Posts

• Base plate dimensions: 250mm x 250mm x 8mm.
• Base fixing: 4 x 11mm fixing holes.
• Post dimensions 50mm x 50mm tube.
