- Designed for use with 230V single or double swing gates
- Simplfied installation & wiring
- Complies with EU regualtion 2023/826 which estblishes eco-compatible design requirements for power consumption in off mode, standby mode & grid standby mode.
- Both the ZLX230P & ZLX230S are fully compatible with the RIO system.

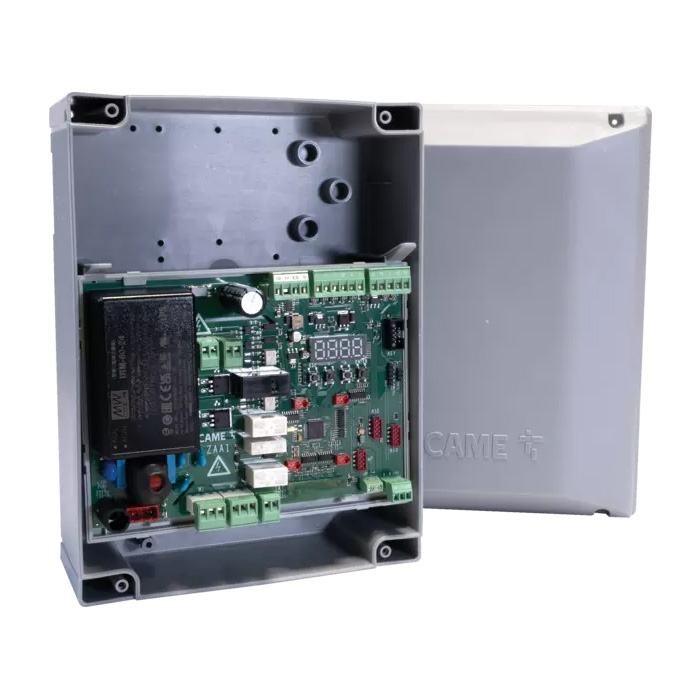

ZLX230 P
- Essential control panel
- Replaces old CAME ZA3P
- Ideal for more compact installations such as residential
- Provides a 7-segment programming display & two configurable safety inputs
- Up to 250 storable users
- Digital Torque Control (DTC) electronically adjusts the force of operators
- Self-diagnosing safety devices
- RIO System 2.0 Compatibility
- Supports BUS CXN optionally with module (806XG-0110) for wireless accessories
- CAME CONNECT ready- via WiFi/GSm Gateway or CAME KEY
- Digitally sets the torque which can be changed remotely via CAME Connect or via display/CAME KEY
- Dimension 273 x 204 x 132 mm

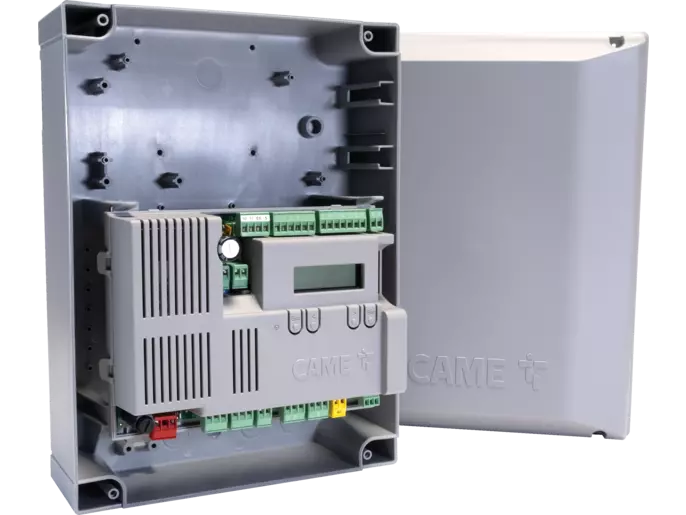

ZLX230 S
- Multi-function control panel
- Replaces old ZM3EZ
- Ideal for larger installations such as commercial
- Supports management of motors with or without an encoder
- Offers four configurable safety inputs
- B1-B2 outputs
- Equipped with graphic programming display that provides detailed information and an easy-to-use text menu
- Up to 1000 storable users
- Self diagnosing safety devices
- Adaptive Speed Control
- Four configurable safety inputs
- CAME CONNECT ready – via Ethernet, WiFi or GSM gateways

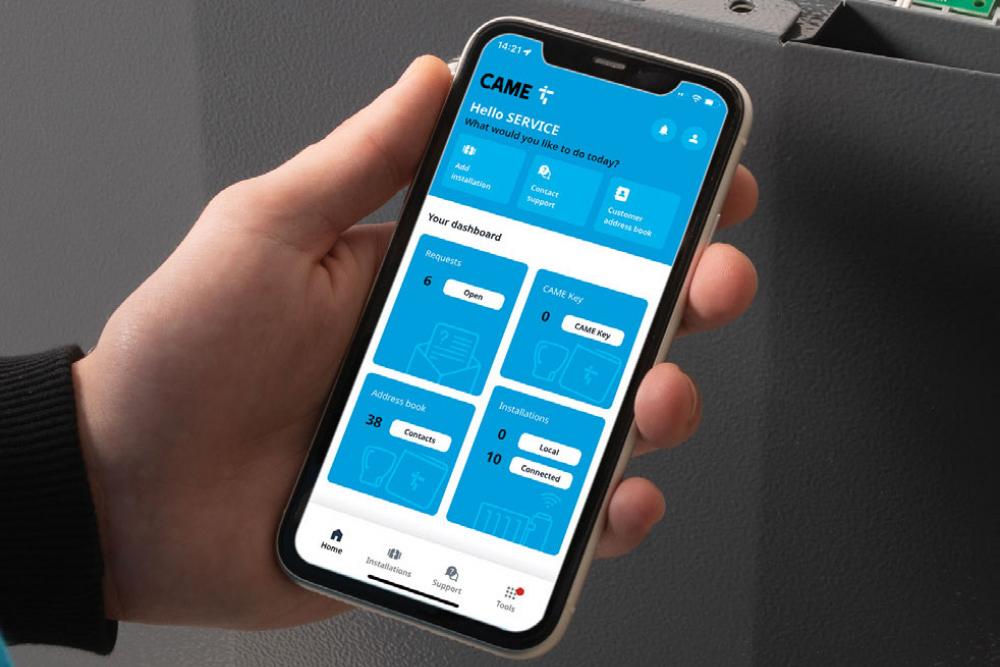

- Control and maintain the system via Cloud App.
- RIO System 2.0 Compatibility
- Intergrated clock/timer module allowing up to 8 time slots over 16 days.
CAME ZLX230 Series
801QA-0110
ZLZ230P Control board (250 users)
801QA-0130
ZLX230S Control board (1000 users)
