SKU: 415 24V L/LS DOUBLE

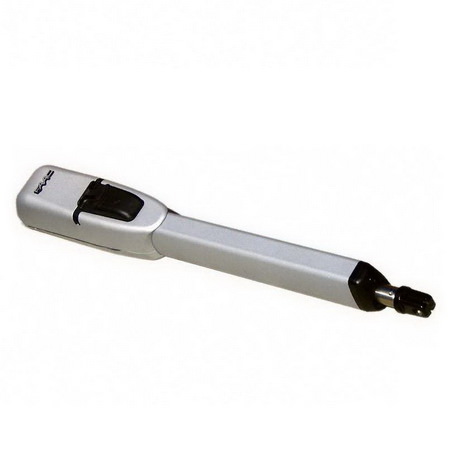

FAAC 415

Electromechanical Double Kit

24v

£1,203.00 – £1,328.00 exc VAT

Product

Clear

Official ResellerLogin or Register for Special Pricing

FAAC 415 24V Double Kit

Electro-mechanical above ground operator
Suitable for residential swing-leaf gates
Max single leaf gate length 2.3 (2.7m with electric lock)
Effective stroke 350 mm
Opening and closing mechanical stops.
New ‘Multi-position’ fixing bracket for non-welded installation
E0245S control unit with anti-crushing device and virtual encoder with reverse function upon detection of obstacle
Single and Double kits available with or without limit switch
SAFEzone system : 415+ E024S or E124
GREENTECH system : 415 + E124

Product Options

Item: Description; Code; Price
Double Kit: 415 24v Double Kit; 415 24V KIT; £1145.00
Double Limit Switch Kit: 415 24v Double Limit Swith Kit; 415 LS 24V KIT; £1214.00
Double Long Kit: 415 24v Double Long Kit; 415 L 24V KIT; £1194.00
Double Long Limit Switch Kit: 415 24v Double Long Limit Switch Kit; 415 L LS 24V KIT; £1264.00

All prices exclude VAT

Item: Single Kit; Double Kit
Electromechanical operator (1044151 /1044161 /1044171 / 1044181): 1; 2
E124 Control board: 1; 1
Pair of XP 20B D photocells: 1; 1
Receiver XF 868 SLH: 1; 1
Two-channel transmitter 868 SLH: 2; 2

: 415; 415 LS
Power supply voltage: 230 V ac; 230 V ac
Electric motor voltage: 24V; 24V
Power: 70 W; 70 W
Current: 3 A; 3 A
Thermal protection
Capacitor
Thrust: 280 daN; 280 daN
Rod stroke: 300 mm; 300 mm
Rod extension speed: 1.6 cm/sec; 1.6 cm/sec
Leaf max. length: 3m; 3m
Type & frequency of use at 20°C: 100%; 100%
Indicative max hourly cycles at 20°C: ~30; ~30
Operating ambient temperature: -20°C to +55°C; -20°C to +55°C
Weight: 7.8 kg; 7.8 kg
Dimensions (LxDxH) in mm: 835 x 105 x 148; 835 x 105 x 148
Protection class: IP 54; IP 54
Travel limit microswitches: NO; YES

Tech Specs (L)

: 415 L; 415 L LS
Power supply voltage: 230 V ac; 230 V ac
Electric motor voltage: 24V; 24V
Power: 70 W; 70 W
Current: 3 A; 3 A
Thermal protection
Capacitor
Thrust: 280 daN; 280 daN
Rod stroke: 400 mm; 400 mm
Rod extension speed: 1.6 cm/sec; 1.6 cm/sec
Leaf max. length: 4m; 4m
Type & frequency of use at 20°C: 100%; 100%
Indicative max at hourly cycles at 20º: ~25; ~25
Operating ambient temperature: -20°C to +55°C; -20°C to +55°C
Weight: 8 kg; 8 kg
Dimensions (LxDxH) in mm: 940 x 105 x 148; 940 x 105 x 148
Protection class: IP 54; IP 54
Travel limit microswitches: NO; YES
