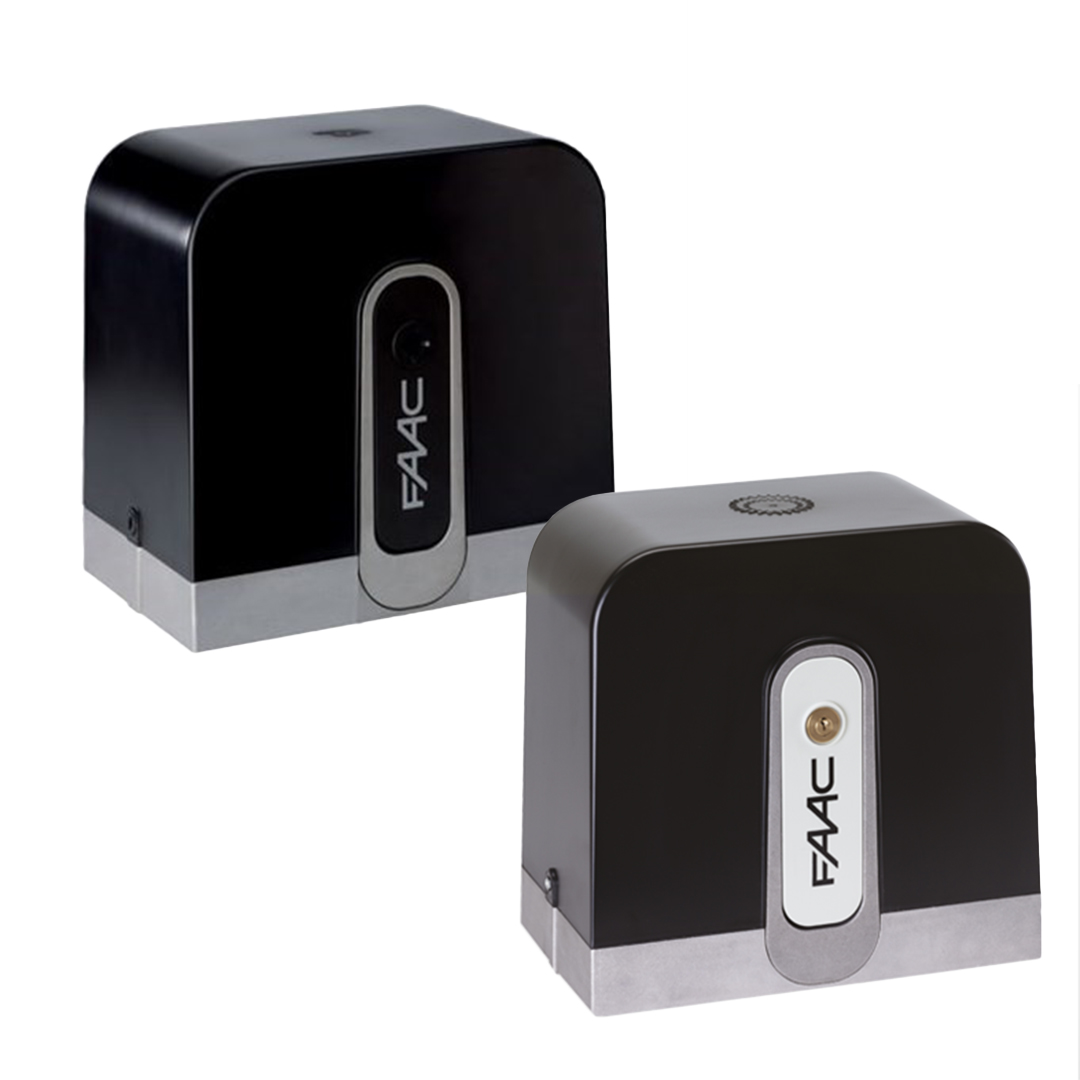

FAAC C720/ C721 24V Sliding Gate Operator

24v

£248.25£408.75 exc VAT

FAAC
Clear
SKU: 109320* Categories: , Brand:

Description

  • Suitable for residential sliding gates
  • Max weight of 400 kg (C720) and 800kg (C721)
  • New mobile-axis reduction principle (FAAC patent).
  • Exceptionally high mechanical performance >80% Electronic control unit with anti-crushing device & virtual encoder with reverse function upon detection of obstacle
  • Magnetic limit switches
  • Master-slave configuration is available with the C721

Kit Information

Document Downloads

Don't forget friendly and trusted help is ready for you with query you may have!

Technical Specifications

C720
C721
Power supply voltage
230 V ac 50 Hz
230 V ac 50 Hz
Motor power supply
24 Vdc
24 Vdc
Power
170W
290W
Absorbed current
7 A
12 A
Electric motor
3200 r.p.m
3600 r.p.m
Max. torque
18 Nm
30 Nm
Thrust on gate
320 N
530 N
Pinion
Z28 mod 4
Z28 mod 4
Gate speed
18m/min
18m/min
Operating ambient temp
-20°C to +55°C
-20°C to +55°C
Weight
8 kg
8 kg
Limit switch
Magnetic
Magnetic
Protection class
IP 44
IP 44
Dimensions (LxDxH) in mm
300 x 180 x 280
300 x 180 x 280

Product Variants

Item
Description
Code
Price
C720 24V
Gearmotor for sliding gates up to 400kg, continuous use, E721 incorporated
109320
£248.25
C721 24V
Gearmotor for sliding gates up to 800kg, continuous use, E721 incorporated
109321
£408.75

All prices exclude VAT
