Nice

SKU: EPM*

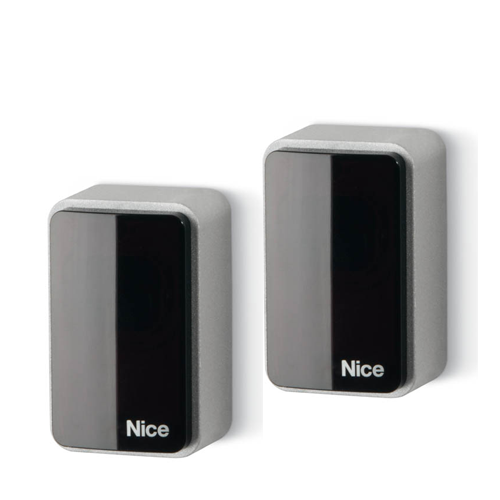

NICE ERA Photocell M

£44.34 – £78.75 exc VAT

  • NICE ERA Photocell M
  • Fixed, synchronized photocells Medium, fixed or positional, also with BlueBUS technology
  • D type device according to specification which allows to pick up obstacles on the optical axis between transmitter and receiver
  • Anti glare circuit which eliminates possible sunlight interference
  • 10º angle of reception, the positionable versions allow for the compensation of centering gaps up to 30º
  • ABS body resistant to weather conditions, also available in burglar resistant version with metal shell
ERA Photocell M
EPM
Pair of surface mounted photocells
EPMO
Pair of surface mounted photocells, adjustable through 30°
EPMB
Pair of surface mounted photocells, for connection via Nice BlueBUS
EPMOB
Pair of surface mounted photocells, adjustable through 30°, for connection via Nice BlueBUS
Code
EPM / EPMO
EPMB / EPMOB
Estimated range (m)
15 (30 with jumper + "10" cut)
up to 15 for maximum TX-RX offset +/- 5
Power supply
without 24 VAC/VDC jumper limits; 18-35 VDC, 15-28 VAC with 12 VAC/VDC jumper limits; 10-18 VDC, 9-15 VAC
-
Power output
-
the device can be only be connected to "BlueBUS" networks, from which it receives power and transmits the output signals
Draw (mA)
25 RX, 30 TX
-
Photocell adjustability
- / approx 30° on all axes
- / approx 30° on all axes
Protection class (IP)
44
44
Operating Temperature (°C Min/Max)
-20 ÷ +50
-20 ÷ +55
Relay range
max.500 mA and 48 V
-
Dimensions (mm)
50x29x80 h / 50x38x80 h
50x29x80 h / 50x38x80 h
Weight (g)
140 / 160
140 / 160
