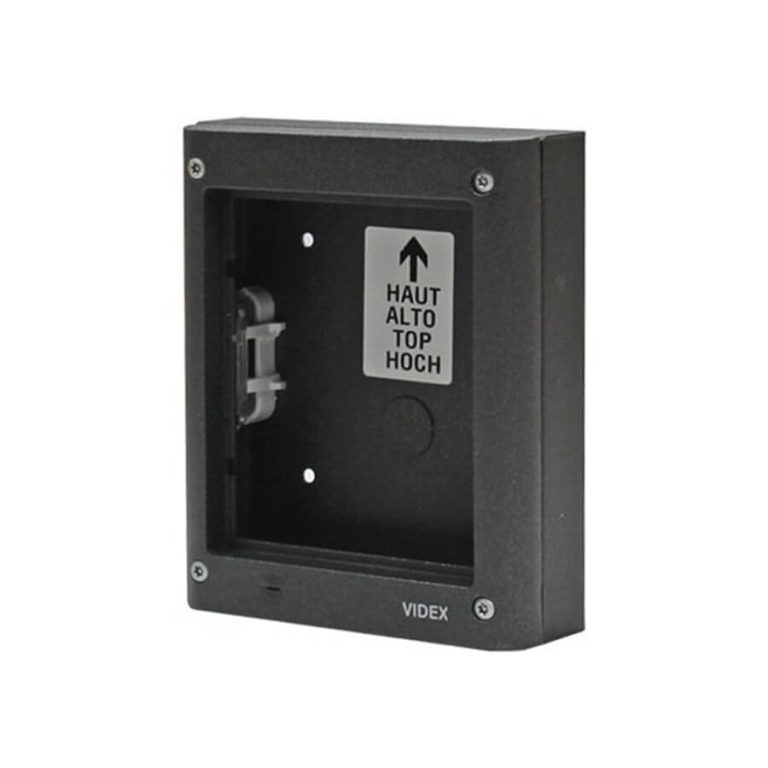

- Surface back boxes & Flush frames for the 4000 series modules
- Manufactured from one piece die cast alloy which provides substantial strength to the door station.
- Modules are simply attached to the frame using a strong clip in system.
- Modules are then held securely by inserting clip in brackets.
- The frames are hinged to allow the installer to have both hands free when making connections and alignments.
- Torx pin security screws are used to attach the front support frame to either a surface back box or a flush mount ABS back box.
- Back boxes are available in 6 different sizes, 1, 2, 3, 4, 6, and 9 module.
- Flush frames are available in 3 different sizes, 1, 2 and 3 module and can be combined to house more modules if required.
- Gun Metal Grey Finish
- All surface back boxes & flush frames are compatible with the 4000 series surface mount rain shields.
4000 SERIES BACK BOXES/ FRAMES
4851
1 module flush
4852
2 module flush
4853
3 module flush
4881
1 module surface
4882
2 module surface
4883
3 module surface
4884
4 module surface
4886
6 module surface
4889
9 module surface
Dimensions
Flush
4851 front support frame (mm): 135 (W) x 160 (H) x 16 (D) & flush back box: 120 (W) x 143 (H) x 45 (D)
4852 front support frame (mm): 135 (W) x 280 (H) x 16 (D) & flush back box: 120 (W) x 263 (H) x 45 (D)
4853 front support frame (mm): 135 (W) x 400 (H) x 16 (D) & flush back box : 120 (W) x 383 (H) x 45 (D)
Surface
4881 dimensions (mm): 135 (W) x 160 (H) x 44 (D)
4882 dimensions (mm): 135 (W) x 280 (H) x 44 (D)
4883 dimensions (mm): 135 (W) x 400 (H) x 44 (D)
4884 dimensions (mm): 270 (W) x 280 (H) x 44 (D)
4886 dimensions (mm): 270 (W) x 400 (H) x 44 (D)
4889 dimensions (mm): 405 (W) x 400 (H) x 44 (D)
