SKU: ESVKX*

VIDEX ESVKX Video kits with Prox (2 wire)

Name: VIDEX ESVKX Video kits with Prox (2 wire)
Brand: VIDEX
SKU: ESVKX*
Availability: InStock

Price range: £526.14 through £936.32 exc VAT

Button

Fitting

Video/Prox Option

Clear

Ideal for one to one installations or low-rise apartment blocks (up to 12 units)
Available as 1 & 2 button colour videokits (however expandable up to 12 buttons)
Flush or surface mount door entrance panels based on the 4000 series range
Proximity reader (ESVKX) or keypad (ESVKC) option
Videokits available with either 6286, 6388, 6488 or 6700 videophones
Expandable up to 8 entrances (with additional 2301N multiple entrance switchers)
Call a total of up to 4 videophones per call button
Intercommunication between videophones in same apartment or between different apartments
DDA compliant call progress LED’s and reassurance tones
High quality colour camera with 4 illumination LED’s
Selectable camera recall facility (including external camera input)
PTE input and built-in dry contact relay (including selectable capacitor discharge)
Microphone, speaker volume and balance adjustments
Built-in proximity reader (for up to 50 users)

ESVKX - VIDEO kit with PROX (2 wire)

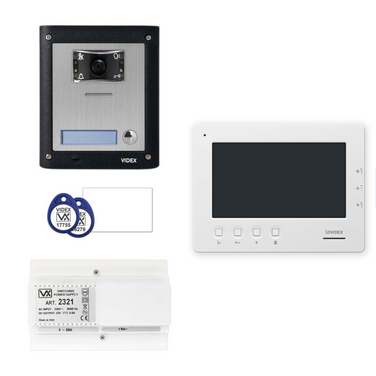

ESVKX -1/6788

Flush, 1 button & 7" handsfree monitor (6788)

ESVKX -1S/6788

Surface, 1 button & 7" handsfree monitor (6788)

ESVKX -2S/6788

Surface, 2 button & 7" handsfree monitor (6788)

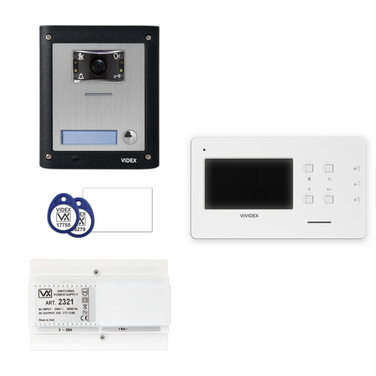

ESVKX-1/6488

Flush, 1 button & 4.3" handsfree monitor (6488)

ESVKX-1S/6488

Surface, 1 button & 4.3" handsfree monitor (6488)

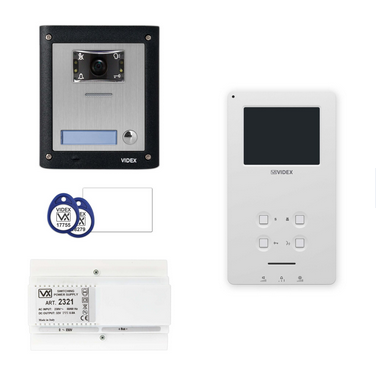

ESVKX-1/6388

Flush, 1 button & 3.5" handsfree monitor (6388)

ESVKX -1S/6388

Surface, 1 button & 3.5" handsfree monitor (6388)

ESVKX-2S/6388

Flush, 2 button & 3.5" handsfree monitor (6388)

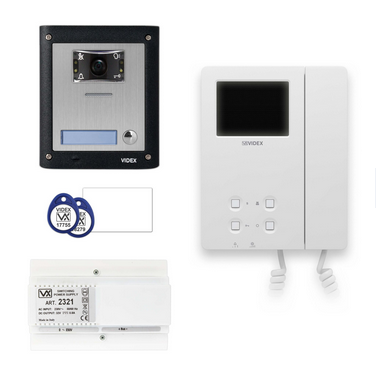

ESVKX-1/6286

Flush, 1 button, 2 wire, with 3.5" videophone (6286)

ESVKX-1S/6286

Surface, 1 button, 2 wire, with 3.5" videophone (6286)

ESVKX-2/6286

Flush, 2 button, 2 wire, with 3.5" videophone (6286)

ESVKX-2S/6286

Surface, 2 button, 2 wire, with 3.5" videophone (6286)

System: VX2300 video kits
Power Input & PSU model: 32Vdc (0.8A); 2321 PSU
BUS system: 'True' 2 wire digital BUS (32V - 35Vdc)
No. of Entrances: 1 (expandable up to 8 max. with 1 x 2301N entrance switcher per 4 entrances, 2 max.)
Max. No. of call buttons: 2 (expandable up to 12 buttons with additional 4000 series button expansion modules
Max. No. of videophones per call button: 4
Videophone Options: 6286, 6388, 6488 or 6788
Speaker/Camer Module: 4384X-1 (1 way videokits): 4384X-2 (2 way videokits)
Camera: High Quality CMOS camera with 4x white illumination LEDs (10° tilt adjustment)
DDA Compliant:: 4 Call progress LEDs - BUSY, CALL, SPEAk & DOOR OPEN with call progress reassurance tones
Proximity: Yes (behind nameplate window) up to 50 users max.
Compatible Prox.: Cards/Fobs: 955/C (card), 955/T (fobs)
PTE Input: 1 (switched 0V push-to-make input)
Lock Release: dry contact relay (C, NO & NC) with selectable capacitor discharge
Recommended Cable: Videx CM2 or CAT5 UTP (unscreened twisted pair). *additional cabling will be required for lock release connection and/or 3rd party devices
Max. Cable Distance using CM2: up to 400m total (200m between panel & PSU, then a further 200m between PSU & videophone
Max. Cable Distance using CAT5: up to 140 total (70m between panel & PSU, then a further 70m between PSU & videophone
