VIDEX 4K Expandible Button Modules

• 4000 Series button expansion modules are used to achieve the required amount of call buttons for audio or audio/video door entry systems.
• 4042 up to 4045 and 4042D up to 4045D for audio/video 4000 series modules with the built-in IDC connector
• Each module has a series of jumpers that when set in a specific position configures the buttons to work through the IDC connector.
• These button modules also require CFL17 (supplied) and CFL45 IDC ribbon cables to link between modules.
• Blue backlit name plate windows
• Robust tactile push buttons
• Matt 316 marine grade stainless steel (or gun metal grey on request) front plate finish available
• Compatible with the full range of 4000 series surface and flush back boxes and rain shields

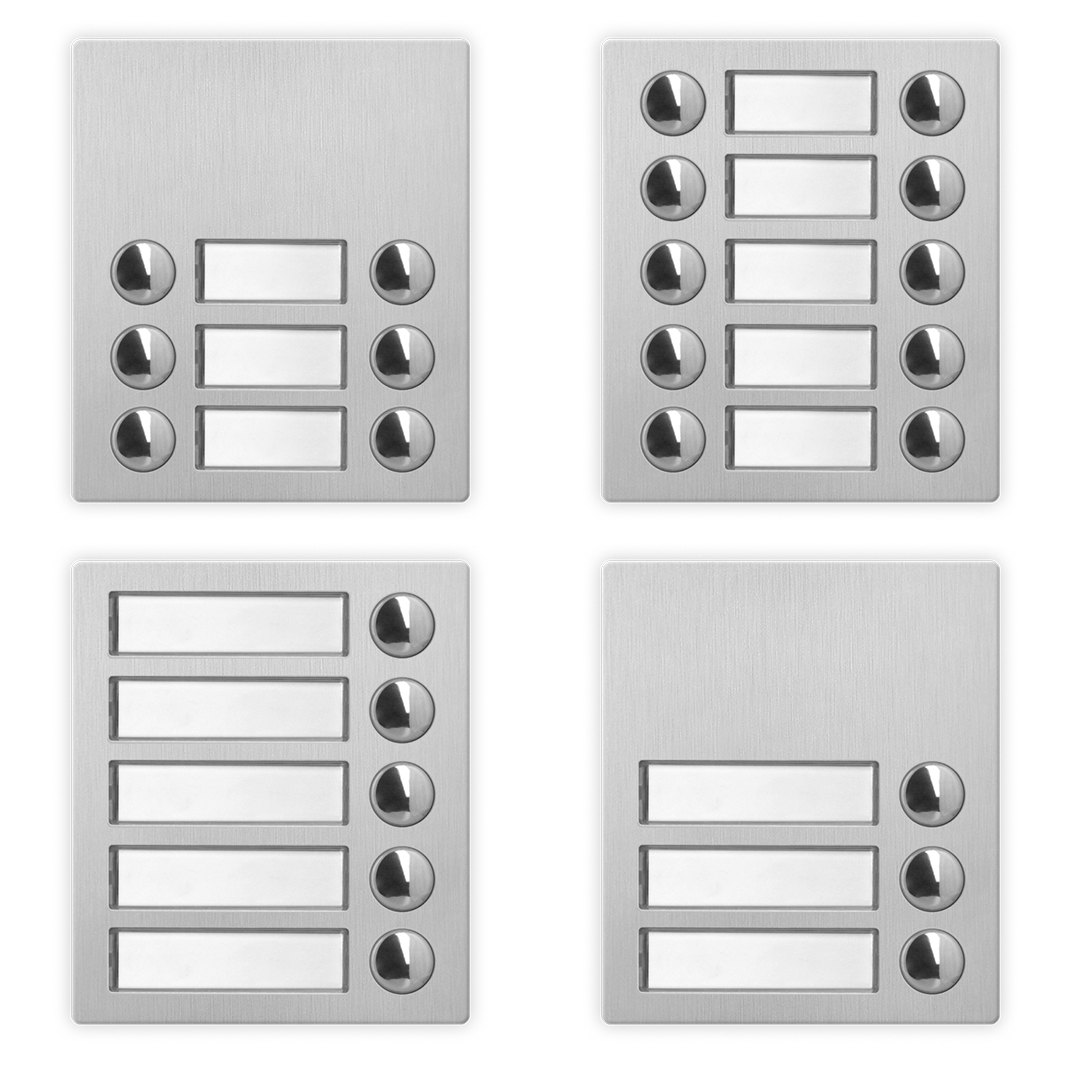

• Single row expansion modules are available with 2, 3, 4 and 5 buttons with IDC connector.D

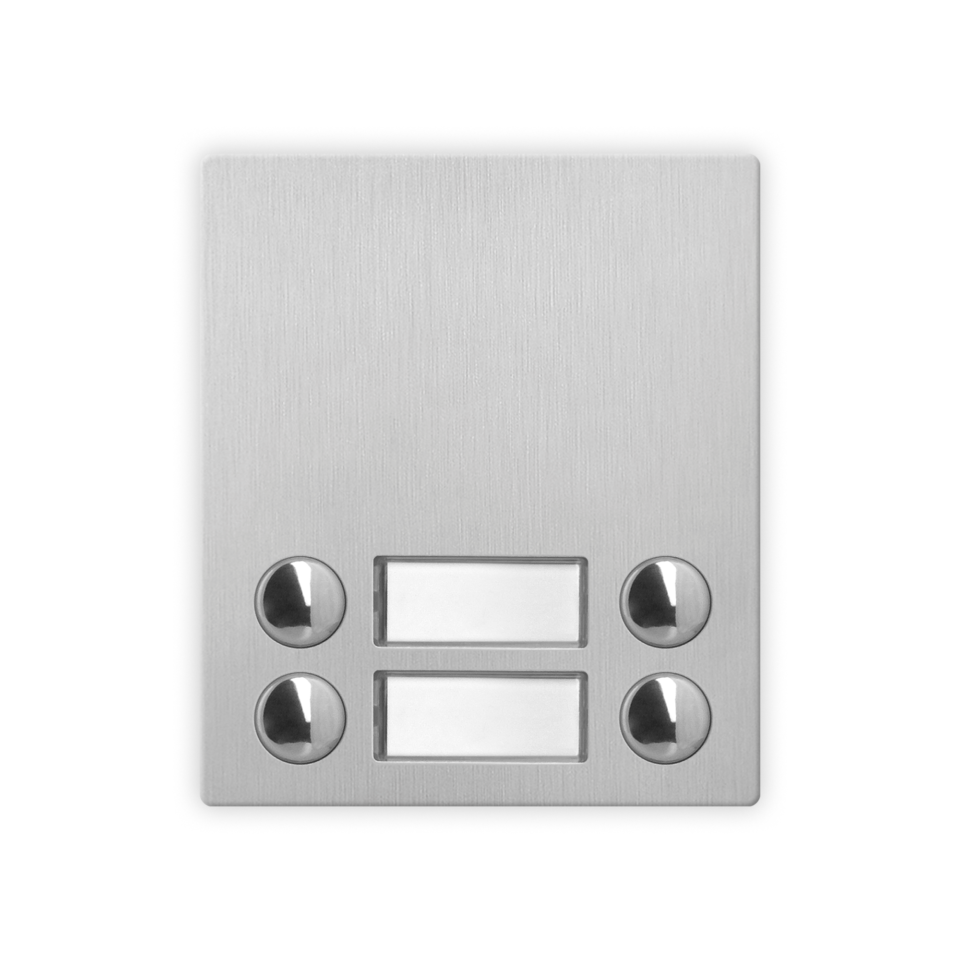

• Double row expansion modules (2 buttons share the name plate window) available with 4, 6, 8, and 10 buttons
• Impact Protection rating IK07
• Ingress Protection rating IP65
• Operating temperature -20°/+60°C.
• Dimensions 103 x 120 x 43mm.

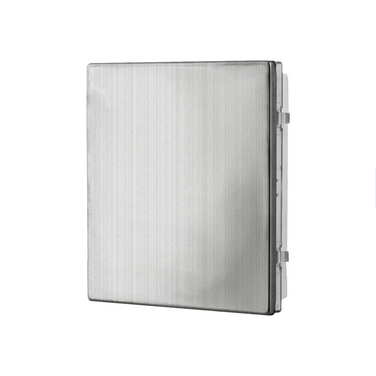

Blanking Module

• For use with multiple audio & video systems where future expansion ma be required at a later date
• Compatible with full range of 4000 series surface & flush back boxes
• Impact Protection IK07
• Ingress Protection IP65

Information  Module

• Internal display area can be customised to provide information to visitors. E.g. Logo, Company Name etc
• Compatible with full range of 4000 series surface & flush back boxes
• Impact Protection IK07
• Ingress Protection IP65
• 12Vdc (for backlit illumination LEDs)
