FAAC 400
FAAC

SKU: 400 UK KIT*

FAAC 400

Kits up to 7m per leaf

230

£1,248.00 – £2,237.00 exc VAT

Official FAAC ResellerLogin or Register for Special Pricing

  • Hydraulic above ground operator
  • Suitable for condominium and industrial swing-leaf gates
  • Large robust operator suitable for gates up to 7m
  • Maximum anti-crushing safety thanks to an exclusive hydraulic device
  • Anti-corrosion cover with high weather resistance
  • Versions CBC (with closing lock) and SBS (slower operation for larger gates)
  • Longer version also available
  • SAFEzone system : 400 + E145 + SAFEcoder
  • GREENTECH system : 400 + E145
FAAC 400 Kits
400 UK KIT S
400 CBAC Single- Hydraulic lock at opening & closing
400 UK KIT
400 CBAC Double as above

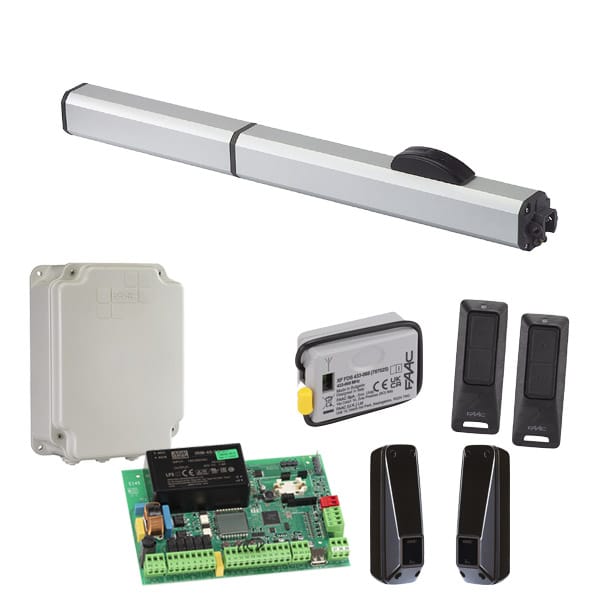

400 SB KIT S
400 SB Single Kit - without Hydraulic lock

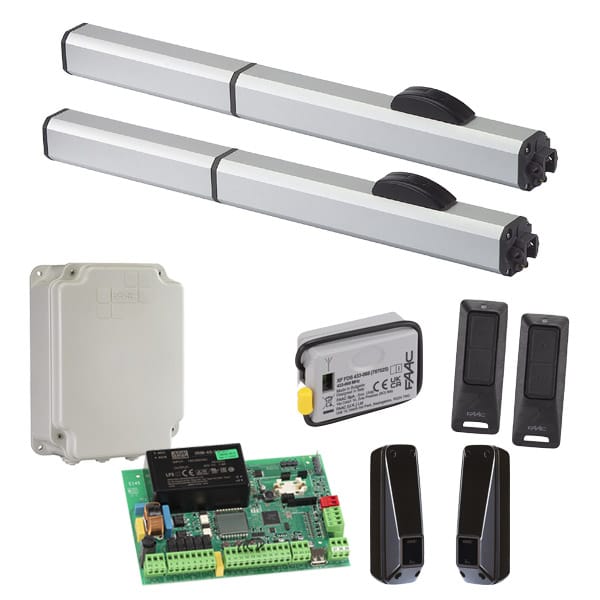

400 SB KIT
400 SB Double as above
400 SBS KIT S
Single - without Hydraulic lock for heavy or panelled leaves
400 SBS KIT
400 SBS Double as above
Item
Single Kit
Double Kit
400 Hydraulic operator - 104201/104206/104203
1
2
Control board
1
1
Control board housing
1
1
Pair of XP 20 D Photocells
1
1
Plug in receiver/decoder 868 SLH
1
1
Two-channel transmitter 868 SLH
2
2
400 CBC/CBA/CBAC/SB
Power supply voltage
230 V ac (+6% -10%) 50 (60) Hz
Absorbed power
220 W
Absorbed current
1 A
Motor rotation speed
1400 r.p.m
Rod extension speed
1 cm/s
Traction & thrust force
0 to 620 daN
Pump flow rate
1 I/min
Operating ambient temperature
-20°C to +55°C
Thermal protection on motor winding
120°C
Weight
8.6 kg
Type of oil
FAAC HP OIL
Protection class
IP 55
Dimensions (LxDxH) in mm
1031 x 113 x 85

Tech Specs

SBS - SBS LONG*
CBACR - CBAC LN**- SB LN**
Power supply voltage
230 V ac (+6% -10%) 50 (60) Hz
230 V ac (+6% -10%) 50 (60) Hz
Absorbed power
220 W
220 W
Absorbed current
1 A
1 A
Motor rotation speed
1400 r.p.m
1400 r.p.m
Rod extension speed
0.75 cm/s
1.5 cm/s
Pump flow rate
0.75 I/min
1.5 I/min
Traction & thrust force
0 to 775 daN
0 to 465 daN
Operating ambient temperature
-20 ºC to +55 ºC
-20 ºC to +55 ºC
Thermal protecting on motor winding
120 ºC
120 ºC
Weight
8.6 kg - 10 kg*
10 kg
Type of oil
FAAC HP OIL
FAAC HP OIL
Protection class
IP 55
IP 55
Dimensions (LxDxH) in mm
1031 x 113 x 85 - 1285 x 113 x 85*
1031 x 113 x 85 - 1285 x 113 x 85**
