SKU: 402 UK KIT*

FAAC 402

£1,297.00 exc VAT

Hydraulic above ground operator
Suitable for residential swing-leaf gates
Max single leaf gate length 1.8m (402 CBC) ans 3m (402 SBS)
Compact design
Maximum anti-crushing safety thanks to an exclusive hydraulic device
Anti-corrosion cover with high weather resistance
Versions CBC (with closing lock) and SBS (slower operation for larger gates)

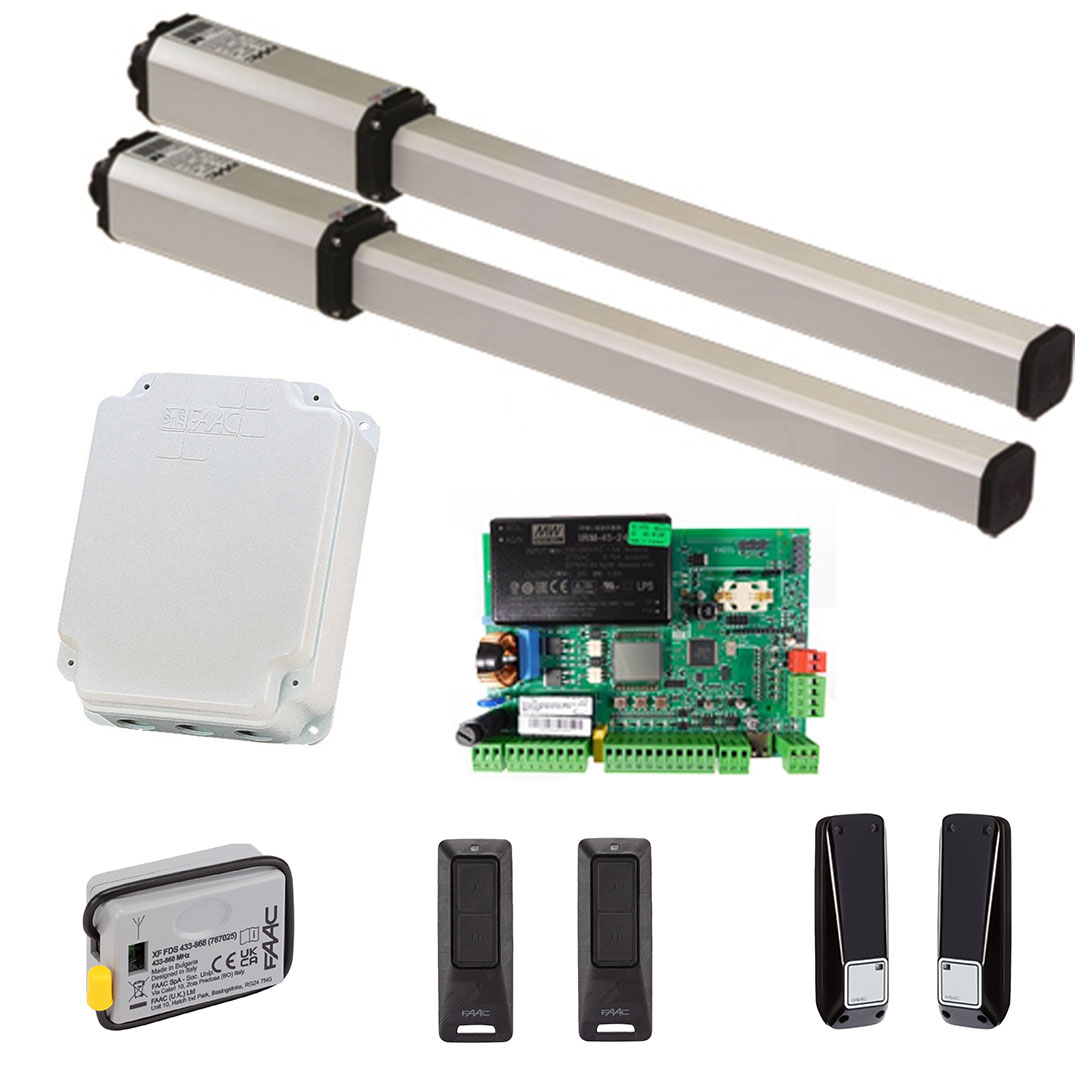

Package includes installation accessories, triangular release key, thrust capacitor 8 µF 400 V
SAFEzone system : 402 + E145 + SAFEcoder
GREENTECH system : 402 + E145

Product: 402 CBC/SB; 402 SBS
Power supply voltage: 230 V ac 50 (60) Hz; 230 V ac 50 (60) Hz
Absorbed power: 230 V ac (+6%-10%) 50 (60) Hz; 230 V ac (+6%-10%) 50 (60) Hz
Absorbed current: 220 W; 220 W
Motor rotation speed: 1 A; 1 A
Rod extension speed: 1.3 cm/s; 1 cm/s
Pump flow rate: 1 I/min; 0.75 I/min
Traction & thrust force: 0 to 500 daN; 0 to 690 daN
Operating ambient temperature: -20 ºC to +55 ºC; -20 ºC to +55 ºC
Thermal protecting on motor winding: 120 ºC; 120 ºC
Weight: 6.5 kg; 6.5 kg
Type of oil: FAAC HP OIL; FAAC HP OIL
Protection class: IP 55; IP 55
Dimensions (LxDxH) in mm: 959 x 85 x 61; 959 x 85 x 61

Don't forget friendly and trusted help is ready for you with query you may have!
