SKU: S800 CBAC KIT S*

FAAC S800H

Single Kit

24

£1,416.00£1,537.00 exc VAT

Official FAAC ResellerLogin or Register for Special Pricing

FAAC S800H 24V Hydraulic Single Kit

  • Underground Hydraulic operator
  • Suitable for residential swing-leaf gates
  • Single leaf max weight 800kg
  • Suitable for large gate leaves up to 4m
  • Continuous use frequency
  • Integrated magnetic encoder with bus “2Easy”. FAAC PATENT
  • Positive stops integrated.FAAC PATENT
  • Hybrid Technology. FAAC PATENT
  • Service release device
  • Integrated handles for easier handling and installation. FAAC PATENT
  • Option to add BUS XIB interface for applications using NO BUS devices.
  • Comes as 100° motors but available as 180° please call us

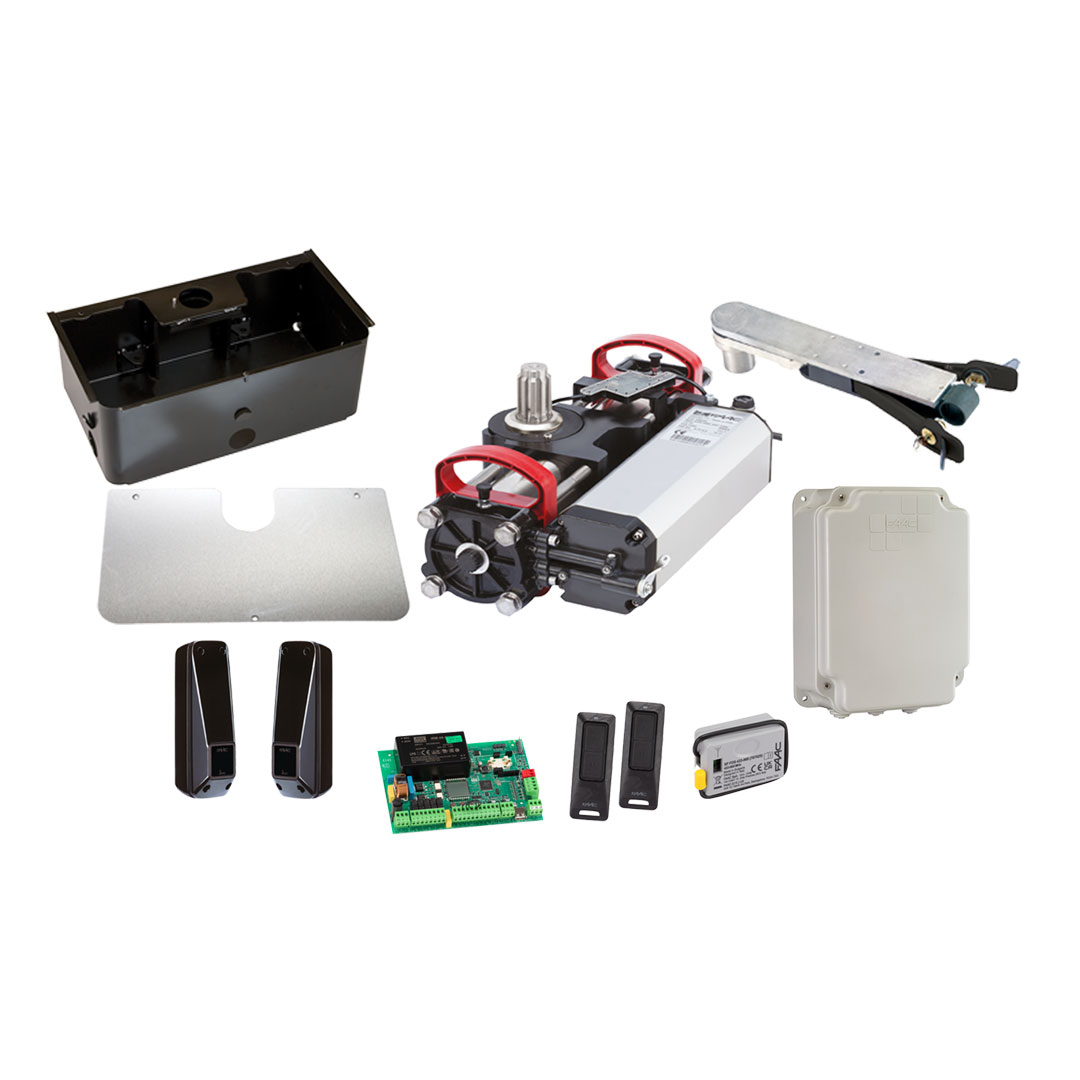

Package contains: hydraulic operator, a magnetic encoder and setting key.
The Foundation box package contains: a foundation box with anti-rotation pin, a cover in stainless steel.



Item
Single Kit

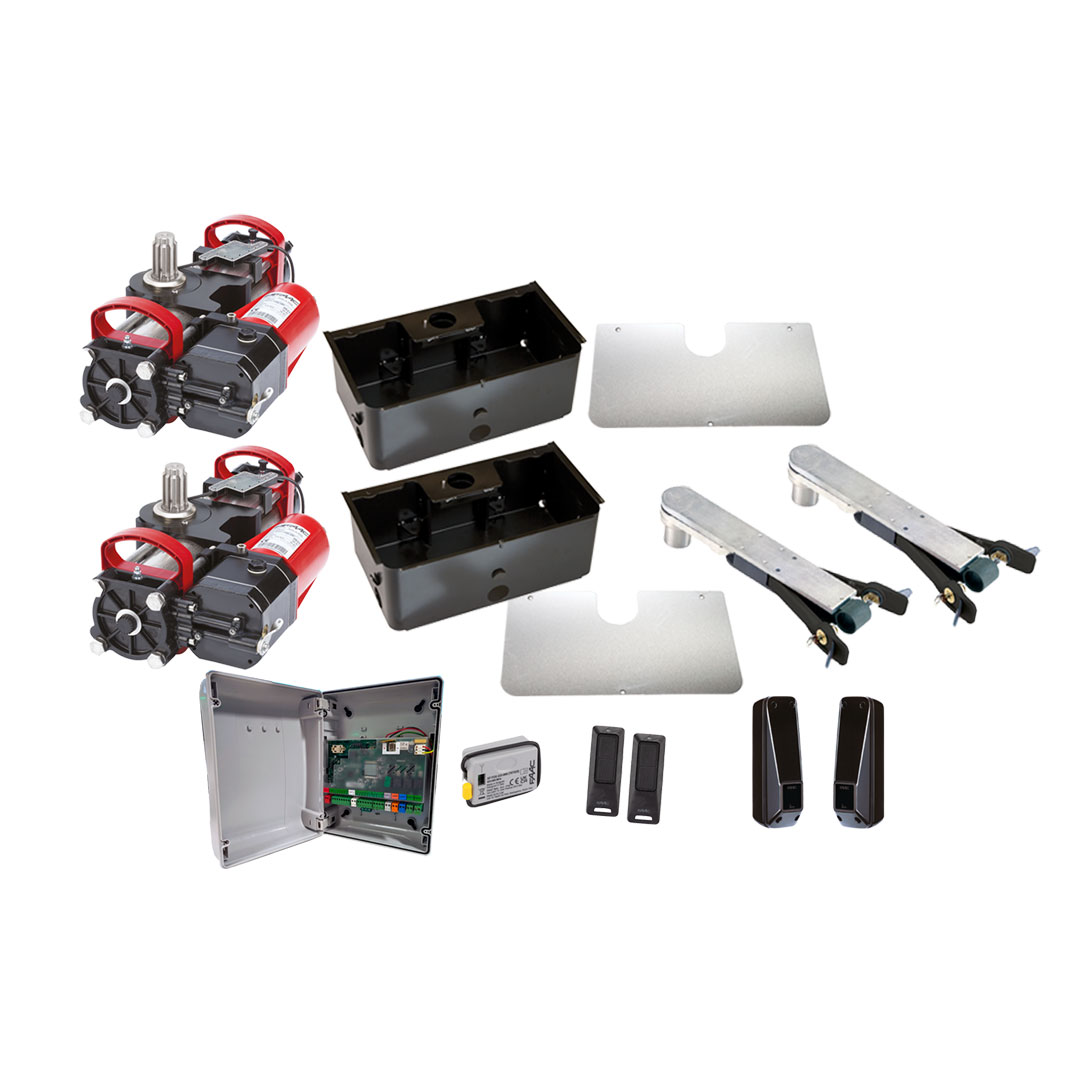

Double Kit
24V Hydraulic operator CBAC 100° or SBW 100°
1
2
Collar assembly for S800
1
2
New Hydraulic release system for CBAC version only
1
2
Underground foundation boxes
1
2
E124 Control board
1
1
Pair of XP 20 B Photocells
1
1
Receiver XF 868 SLH
1
1
Two channel transmitter 868 SLH
2
2
S800H CBAC
S800H SBW
Power supply voltage
230 V ac
230 V ac
Electric motor voltage
24 Vdc
24 V dc
Absorbed power
60 W
60 W
Max. torque
500Nm (E024s control board) - 600Nm (E124 control board)
500Nm (E024s control board) - 600Nm (E124 control board)
Angular speed
5.5°/s (E024s) - 8.2°/s (E124)
5.5°/s (E024s) - 8.2°/s (E124)
Operating ambient temp
-20°C to +55°C
-20°C to +55°C
Operator weight (depending on kit °)
14.2kg (17kg with 180°)
14.2kg (17kg with 180°)
Type of oil
FAAC HP OIL
FAAC HP OIL
Max. opening angle (depending on kit °)
113° - 187°
113° - 187°
Protection class
IP 67
IP 67
Type of slow down
electronic
electronic
Max. leaf length
2m
4m
Frequency of use
Continuous
Continuous
Hydraulic lock
Installed
Not installed
