SKU: ERA EPMOR - EPMORB

NICE ERA Photocell M

Reflective

£20.35 exc VAT

  • Reflective Technology requires only the main photocell to be wired and not the reflective mirror
  • EPMOR & EPMORB have a relay output for connection to any new or existing system
  • EPMORB – can be connected to BlueBUS networks, from which it receives power and output signals

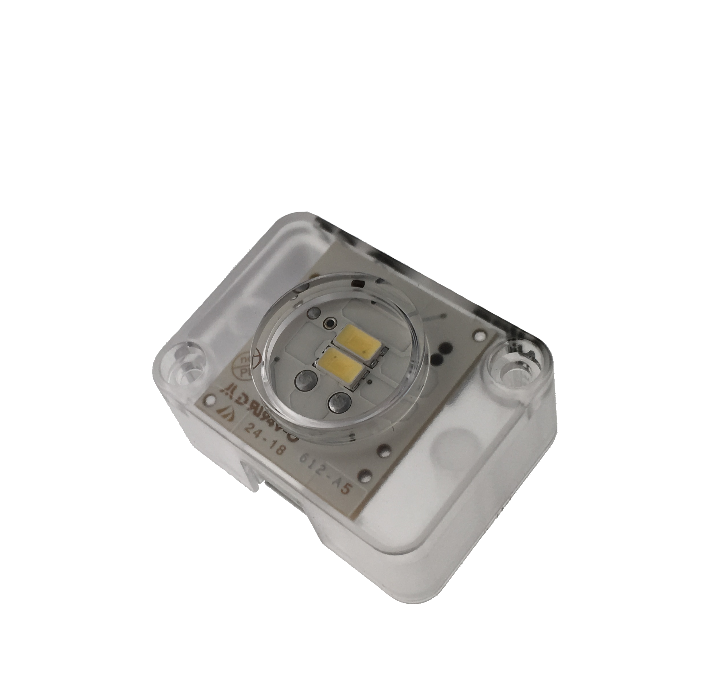

  • ELMM LED light module can be installed in the EPMOR to illuminate transit area , act as a flashing light or provide diagnostic indications.
  • 8m range (max 15 in optimum conditions)
  • Weather resistant ABS body
  • IP 44
ERA Photocell M - Surface mounted
EPMOR

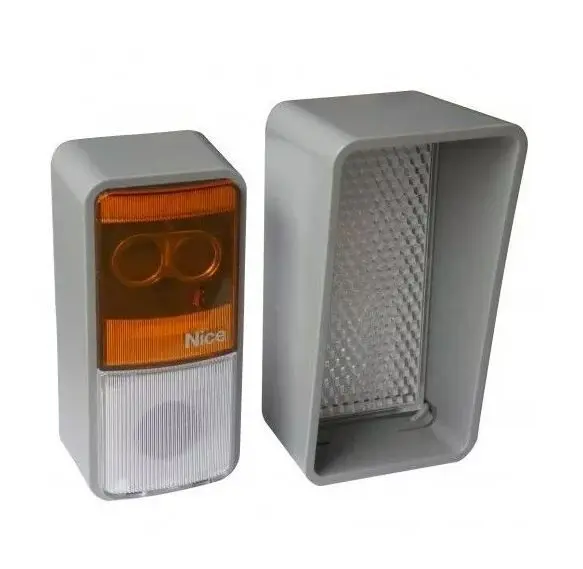

Reflective photocell + reflective mirror
EPMORB
Reflective photocell with NICE BlueBUS + reflective mirror
ELMM
LED light module for EPMOR
EPMOR
EPMORB
Estimated Range
8m (15m in optimal conditions)
8m (15m in optimal conditions)
Power Supply
12-24V
-
Power Output
-
can only be connected to BlueBUS networks from which it recieves power& transmits the output signals
Photocell adjustability
Approx 10º on all axes
-
Protection Class
IP44
IP44
Operating Temperature ºC
-20 ÷+50
-20 ÷+ 55
Relay Range
max. 500 mA & 48v
-
Dimensions (mm)
50 x 40 x 105h
50 x 40 x 105h
